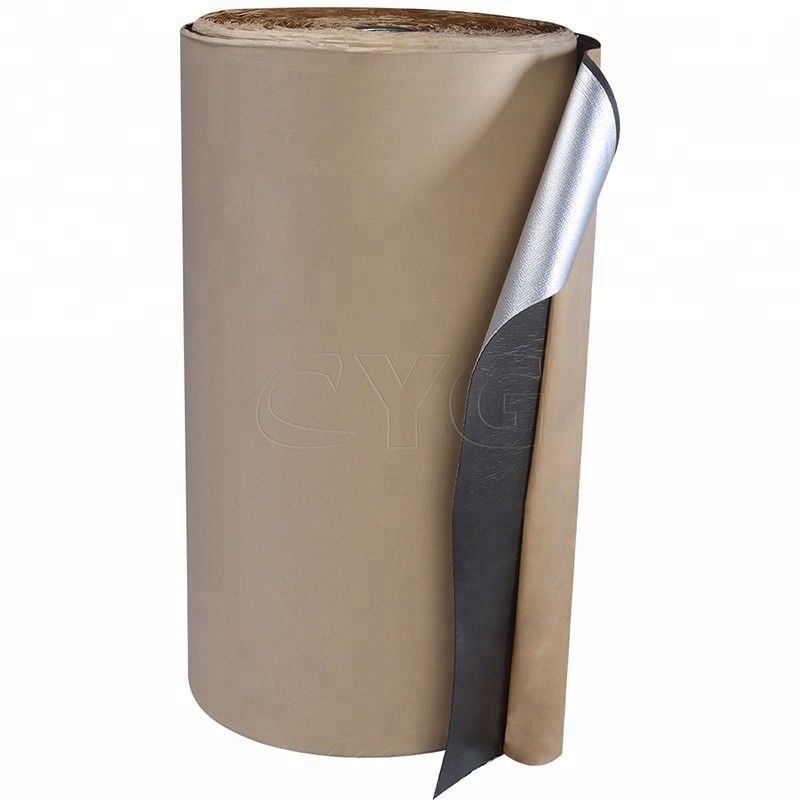

Alu Foil Polyethylene Foam Adhesive Backed Insulation Closed Cell Foam Insulation Sheets

Alu Foil Polyethylene Foam Adhesive Backed Insulation Closed Cell Foam Insulation Sheets
Alu Foil Polyethylene Foam Adhesive Backed Insulation Closed Cell Foam Insulation Sheets Alu Foil Polyethylene Foam Adhesive Backed Insulation Closed Cell Foam Insulation Sheets Alu Foil Polyethylene Foam Adhesive Backed Insulation Closed Cell Foam Insulation Sheets

Large Image :  Alu Foil Polyethylene Foam Adhesive Backed Insulation Closed Cell Foam Insulation Sheets

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: CYG TEFA
Certification: ISO9001, ISO14001, IATF16949,FMVSS 302,UL94 HF-1,RoHS,CE,etc.
Model Number: XPE
Payment & Shipping Terms:
Minimum Order Quantity: 2000 Square Meter/Square
Price: $0.30 - $0.65 / Square Meters
Packaging Details: Packing as Request or Common Packing with PE Bag
Supply Ability: 50000 Square Meter/Square Meters per Day

Alu Foil Polyethylene Foam Adhesive Backed Insulation Closed Cell Foam Insulation Sheets

Description
Material: PE Thickness: 5mm / 8mm /customized
Density: 66.7kg/M3 Water Absorption(23degree,24h): <0.1 %
Thermal Conductivity: <0.039 W/m.k Product Name: Pe 5 Mm Foam With Self Adhesives Backing
Feature: Self Adhesives Backing Foam



Alu Foil Polyethylene Foam Adhesive Backed Insulation



Polyethylene foam sheets xlpe foam is made of Low-Density PE Polymer. Commonly made and used as an insulation & protective material for various Industry applications.CYG foam is a strong, resilient closed-cell foam and it has several outstanding physical properties such as;

  • Closed cell cross-linked polyethylene foam
  • Excellent thermal insulation
  • Lightweight
  • Cost-effective
  • Easy to fabricate
  • Non-dusting
  • Superb strength, and tear resistance
  • High shock absorption
  • Flexibility





Application



  • Insulation on the dashboard, door panels, door armrests
  • Lightweight product solution for automobile air duct
  • Using for head pillow case by PIP filling&foaming technology
  • Waterproof and soundproof car door material
  • As damping and soundproofing foam products around the front of the cockpit
  • Excellent Roof / Head Lining thermal insulation solutions
  • Automotive NVH products solutions
  •


Specification



  • Foam Type: XPE FOAM / XLPE FOAM
Property Standard Unit Value
Density - Kg/m³ 100.00
Tensile Strength Transverse ISO-1798 MPa 0.89~0.90
Longitudinal 0.98~1.04
Elongation Transverse ISO-1798 % 130.30~148.50
Longitudinal 130.00~158.20
Tearing Strength Transverse

ISO-8067



Kn/m 5.87~6.00
Longitudinal 6.22~6.54
Compression 25% ISO-3386-1 kPa 185.20
Compression 40% ISO-3386-1 kPa 252.40
Compression 50% ISO-3386-1 kPa 316.80
Compression Set 25% 0.5H ISO-1856 % 7.10
Compression Set 25% 24H ISO-1856 % 3.30
Operating Temperature Range Internal °C (-40,+80)
Water Absorption % Volume (Maximum) Internal % 0.30
Thermal Conductivity JIS A1412-2 W/mK 0.073
Shore - C ASTM D2240 °C 55
Flammability FMVSS302 mm/min -

Additional Information

● All tests were carried out in 23°C ± 2.

● Data represents typical values measured on a 8mm thick specimen and should be considered as guidelines only.





Features



  • Low density
  • Good elasticity
  • Good toughness
  • Thermal insulation
  • Energy saving
  • Noise reduction
  • Sound insulation
  • Anti-condensation
  • Corrosion and aging
  • Convenient







About CYG

CYG TEFA is the earliest PE foam manufacturing with scale production in China since 2002.Mainly produce XPE FOAM,IXPE FOAM,IXPP FOAM and ESD PRODUCT(Foam type: PE/EVA/PU/EPE/PP Plastic).Annual production capacity is about 6000 tons.2 bases one in Shen zhen and an other in Huzhou,with total 17 production lines.CYG Management control system: Kingdee / OA / Oracle.CYG have a professional team and technology.More than 30 R&D staff.Through the great variety of our products we provide people with a warm and quiet home and working environment.



CYG Main Product:



Cross-linked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat, camping mat, sleeping mat, yoga mat; etc.



FQA



1) Are the materials in your factory ECO-fiendly,any toxic?
A: All of our products and material are ECO-friendly,non-toxic, and odorless material can be customized.

2) Are the material in your company fit for children?
A: Yes, we have non-toxic ,odorless ,grade A material that suitable for children’s products, and can even meet food grade

3) Can you custom-made as requested?
A: Actually ,all the products made in my factory by far are customized, my factory also offer OEM and ODM service.

4) Can you offer free samples?
A: Yes,we can offer free samples of small sizes (such as A4), but the shipping costs is for the client.

5) What's the delivery time?

A: It takes usually 7-15 days for normal orders.
