Product Details:
|
| Plastic Modling Type: | Extruding | Material: | Closed Cell Xlpe Foam |
|---|---|---|---|
| Thickness: | 1-20MM | Width: | 1-1.5m |
| Density: | 28-80KG/Cubic Meter | Certificate: | SGS CE REACH ISO9001 |
| Color: | Black Foam | Type: | Adhesive Backed Aluminum Foil |
| Application: | HVAC System | Selling Units: | Single Item |
| Single Package Size : | 1X1X25 Cm | Single Gross Weight: | 1.2 Kg |
| Package Type: | Packing As Request Or Common Packing With PE Bag. | ||
| High Light: | foam insulation sheets,building insulation foam |
||

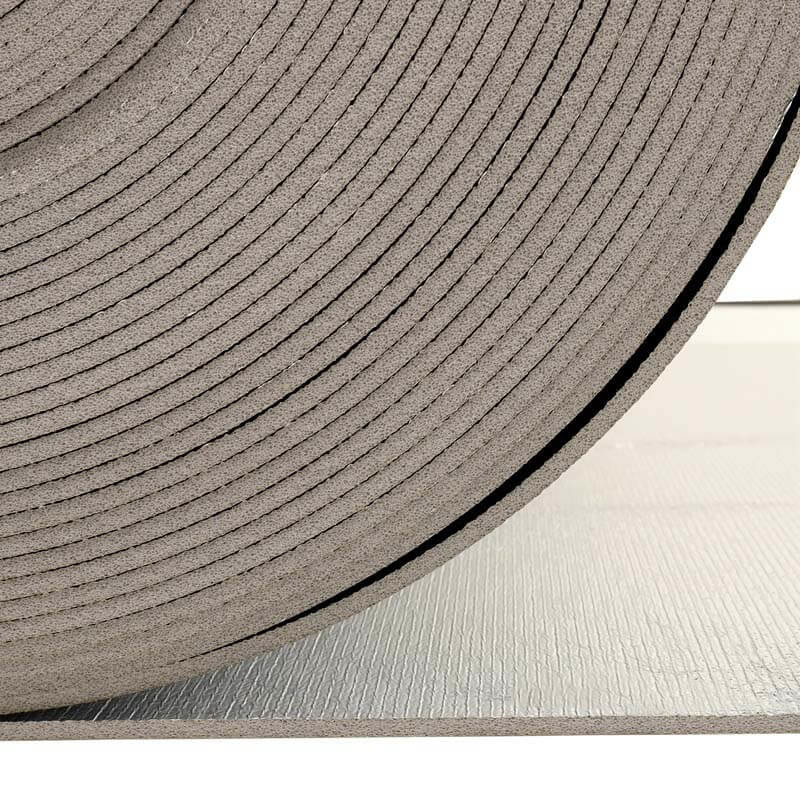

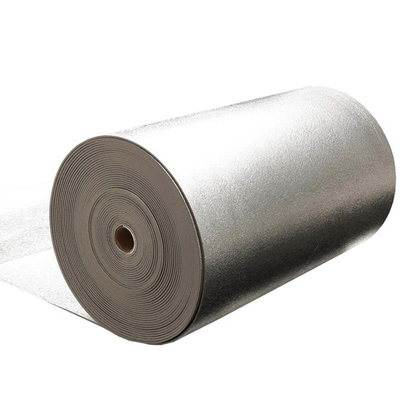

Adhesive Polyethylene Backed Construction Heat Insulation Foam Closed Cell Xlpe
1) Waterproof,clean, light, flexible,non-absorbent surface
2) Recyclable, environmentally friendly
3) Easily install, cut, stapled, nailed or glued into place
4) Effective in extreme temperatures both hot and cold
5) Safe to handle with no special clothing or breathing Equipment
6) Easy to cut and install, without the protective clothing or respirators during installment.
7) Does not support the growth of fungus or mold.
8) Vapor and radon retarder
9) Not affected by moisture or humidity
IXPE has the properties of heat preservation, noise absorption, resistance upon chemics and
climate.It can beeither used in the heat preservation layer of home and mechanical air condition,
or made intothe model shape of the air condition at random which has fine appearance and good
property due to its good properties of resistance upon heat and good modeling.
The air duct insulation foam material is processed by closed cell, cross-linked polyethylene foam
1. Glue coated PE foam laminate with aluminum foil, which increased the thermal conductivity and enhances insulation properties.
2. Self-adhesive makes it easy to install.
The foam products were customized and offered you a cost-effective thermal insulation material for the air duct.
Image details
Function
Temperature control
Energy conservation
Condensation Control
Used in
Duct Insulation
Under Deck Insulation
Cold Insulation
Hot Water Pipe Insulation
Tank Insulation for temperature upto 80 Deg C
Features
1.PE foam+pure aluminum foil (coated aluminum foil)
2.Reflecting up to 97% of radiant heat
3.Excellent fire properties
4.Excellent acoustic insulating properties
5.Environmentally/ Eco-friendly and fibre-free
Application
HVAC insulation material
Chemically Cross Linked Polyethylene insulation also known as XPE or XLPE Insulation is new age widely used insulation material in HVAC industry as well as for Plumbing and hot water pipe insulation.
Being the leading names in the industry, we offer an extensive range of Duct as well as Pipe form XLPE / XPE Insulation that is acclaimed among the clients for high quality and smooth operations. They are thermostatically balanced in nature and have long service life.
About us
CYG TEFA Co., Ltd has 17 years of production experience. We're the biggest and the most professional irradiation cross-linked polyethylene conductive foam manufacturer in China and has the most complete cross-linked polyethylene foam products.
Our main products are Cross-linked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat, camping mat, sleeping mat, yoga mat; etc.
CYG TEFA offers the best solution for polyethylene foam production based on long experience in the developing ,manufacturing PE foam.All the service are focused on quality of products and satisfied our customer.
We are committed to developing,manufacturing and selling cross-linked PE foam.
Over the years,we have developed 3 production bases in Shenzhen,Hangzhou,Chongqing,and 8 production lines of all kinds,with annual production capacity of 4000 tons
All our products can be used for thermal insulation,waterproof,shockproof,etc. and also our products get the UL, ISO, SGS, Rohs, Reach , CE approval.
Our clients are iPhone, Samsung, Gree, Haier, TCL, Adidas, Nike, Flextronics, General Motors, BYD, PPL, etc.
FQA
What is PE foam?
Polyethylene foam is a strong, resilient closed-cell foam. Ideally foam material suited as the material or part of a material required in products requiring a shock absorbing, vibration dampening, insulation, barrier or buoyancy component etc.
Why choose Low-density polyethylene foam?
Low-density polyethylene foam has numerous applications because of its many desirable properties including water-resistance, chemical resistance, energy-absorbance, buoyancy and cushioning characteristics. Compressive strength is greater in denser foams, decreasing as density decreases. Low-density foams tend to exhibit more compressive creep, meaning they become less thick over time, than higher-density foams.
What's the application of insulation?
Our insulation products are widely used on roofing, external wall, floor, HVAC pipe, transportation and any other places needing insulation
What's the difference between pure aluminum & metallic aluminum(MPET)?
Pure aluminum is metal film which can be fireproof, while metallic aluminum(MPET) is just plastic film which can be fire.
What's the difference between XPE & EPE?
Both XPE and EPE are polyethylene foam, but their foaming process are different. XPE with normal density of 33kg/m3, and EPE is 18 kg/m3; XPE can be fireproof, while EPE is not; Also XPE has longer use life than EPE, but EPE is much cheaper.
What's the structure of your pure aluminum film?
We use the pure aluminum film with PET/AL/PE layers, the PET can protect Al from oxidation and corrosion.
What's the R-value?
The R-value differ with material structure and thickness, normally rang from 2.4-3.5.
What's the use age?
If use indoor, can be 5-8 years; if use outdoor, can be 1-3 years; if use inside the wall, can be permanent.
