Product Details:
|
| Material: | PE, XPE / IXPE With Aluminum Foil/film | Thickness: | 0.5-100mm, As Customers Request |
|---|---|---|---|
| Size: | As Requests, 10*3mm, 10*6mm Etc. | Temp. Range: | -50 To 80 |
| Structure: | AL+XPE+AL / XPE+AL | Flame Retardant: | Class A /Class 1 |
| Foam Color: | All Kinds Colors | Width: | Less Than 1500mm |
| Surface: | Aluminum Foil/film | Port: | Shekou |
| High Light: | closed cell foam insulation,foam insulation sheets |
||

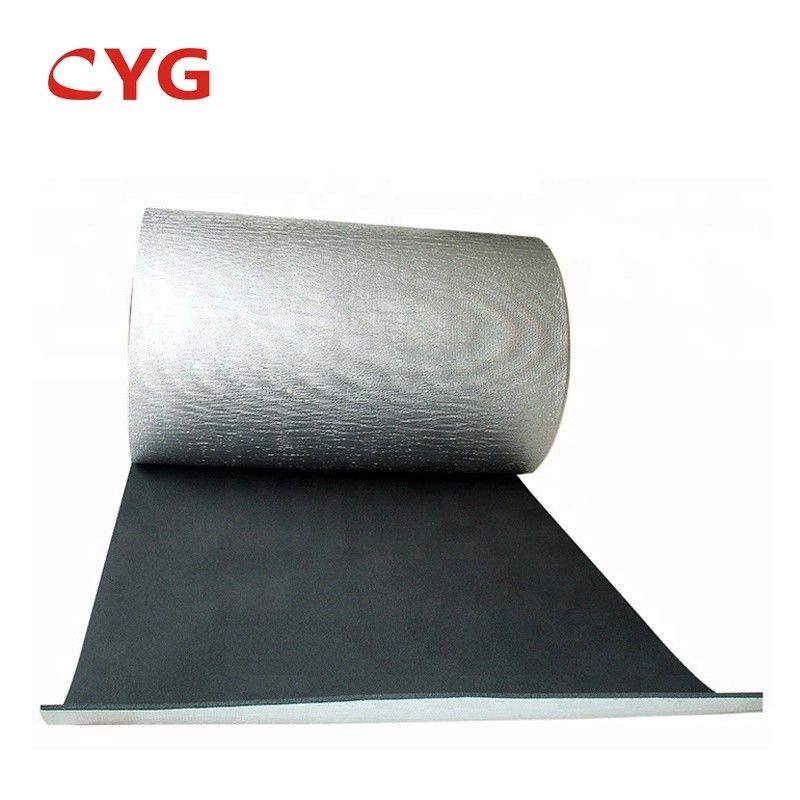

Aluminum film insulation XPE board Foam insulation material
Aluminum film insulation XPE board for the 114th Canton Fair
The 114th Canton Fair (Canton Fair 2013 Autumn Session) announced to be held at China Import and Export Fair Pazhou Complex, Guangzhou from October 15 to November 4, 2013.
1.99.9% pure Aluminum Foil
2.Reflectivity:97%
3.Certificate:SGS / CE / ISO
4.Sound-absorbing, water proof
5.Customized size and structure
6.Non-toxic
7.Polyethylene foam aluminum foam insulation
8.Max width:1.5m
9.light,soft,sun-proof,fire-retardant
Features
Good ability
CYG foam insulating products with good flexibility make them suitable for bent and irregular pipes in construction, saving both labor force and cost
Vibration Resistance
CYG foam heat-proof and heat-preservation plastic-rubber with high elasticity ,can reduce the vibration and resonance of the hot /cold water pipes utmost
Good fire-blocking
This product has fire-blocking and smoke-reducing property , when burned , its density is very low and doesn’t melt, without any small fire ball left and with the merit of self-extinguishing.
According to the standard of GB/T 8624 Method for grading flammability of construction material, this is the flame resistant product of grade B1 enabling to secure the satiety
Low conductivity factor
Conductivity of this material is 0.034w/mk at an average°C.As this product has high heat-releasing ratio, it can get the same heat-preservation effect at less half thickness of other insulating product under the same condition, saving not only space but also cost.
Features of XPE Insulation Material
1. Light weight, clean, good flexibility and cushioning;
2. Invariable if it is attacked repeatedly;
3. Low thermal conductivity and superior heat insulation;
4. Outstanding safety and environmentally friendly;
5. Easy to install, high efficiency;
6. Cost effective and versatile.
Application of XPE Insulation Material
1) Roof,wall,floor, Attic for heat insulation and thermal insulation;
2)Shells of air conditioner and water heater;
3)Protective coatings of water pipe and ventilating pipe;
4)Machinary packing;
5)Making ice package
Certificate authentication :
We complied with SGS, ROHS ,ISO9001etc.international standards.
Any size can be customized .
Contact me and get more details
FAQ
Q1: What's the application of insulation?
A1: Our insulation products are widely used on roofing, external wall, floor, HVAC pipe, transportation and any other places needing insulation.
Q2: What's the difference between pure aluminum & metallic aluminum(MPET)?
A2: Pure aluminum is metal film which can be fireproof, while metallic aluminum(MPET) is just plastic film which can be fire.
Q3: What's the difference between XPE & EPE?
A3: Both XPE and EPE are polyethylene foam, but their foaming process are different. XPE with normal density of 33kg/m3, and EPE is 18kg/m3; XPE can be fireproof, while EPE is not; Also XPE has longer uselife than EPE, but EPE is much cheaper.
Q4: What's the structure of your pure aluminum film?
A4: We use the pure aluminum film with PET/AL/PE layers, the PET can protect Al from oxidation and corrosion.
Q5: What's the R-value?
A5: The R-value differ with material structure and thickness, normally rang from 2.4-3.5.
Q6: What's the advantage of your insulation?
A6: Our insulations have good performance on heat-resistant, fireproof, waterproof, heavy duty, lightweight, Eco-friendly and so on.
Q7: What tools are needed for installation?
A7: Staple gun, utility knife, nailes/screws, hammer, aluminum tape, etc.
Q8: What's the use age?
A8: If use indoor, can be 5-8 years; if use outdoor, can be 1-3 years; if use inside the wall, can be permanent.
Q1: What's the application of insulation?
A1: Our insulation products are widely used on roofing, external wall, floor, HVAC pipe, transportation and any other places needing insulation.
Q2: What's the difference between pure aluminum & metallic aluminum(MPET)?
A2: Pure aluminum is metal film which can be fireproof, while metallic aluminum(MPET) is just plastic film which can be fire.
Q3: What's the difference between XPE & EPE?
A3: Both XPE and EPE are polyethylene foam, but their foaming process are different. XPE with normal density of 33kg/m3, and EPE is 18kg/m3; XPE can be fireproof, while EPE is not; Also XPE has longer uselife than EPE, but EPE is much cheaper.
Q4: What's the structure of your pure aluminum film?
A4: We use the pure aluminum film with PET/AL/PE layers, the PET can protect Al from oxidation and corrosion.
Q5: What's the R-value?
A5: The R-value differ with material structure and thickness, normally rang from 2.4-3.5.
Q6: What's the advantage of your insulation?
A6: Our insulations have good performance on heat-resistant, fireproof, waterproof, heavy duty, lightweight, Eco-friendly and so on.
Q7: What tools are needed for installation?
A7: Staple gun, utility knife, nailes/screws, hammer, aluminum tape, etc.
Q8: What's the use age?
A8: If use indoor, can be 5-8 years; if use outdoor, can be 1-3 years; if use inside the wall, can be permanent.
