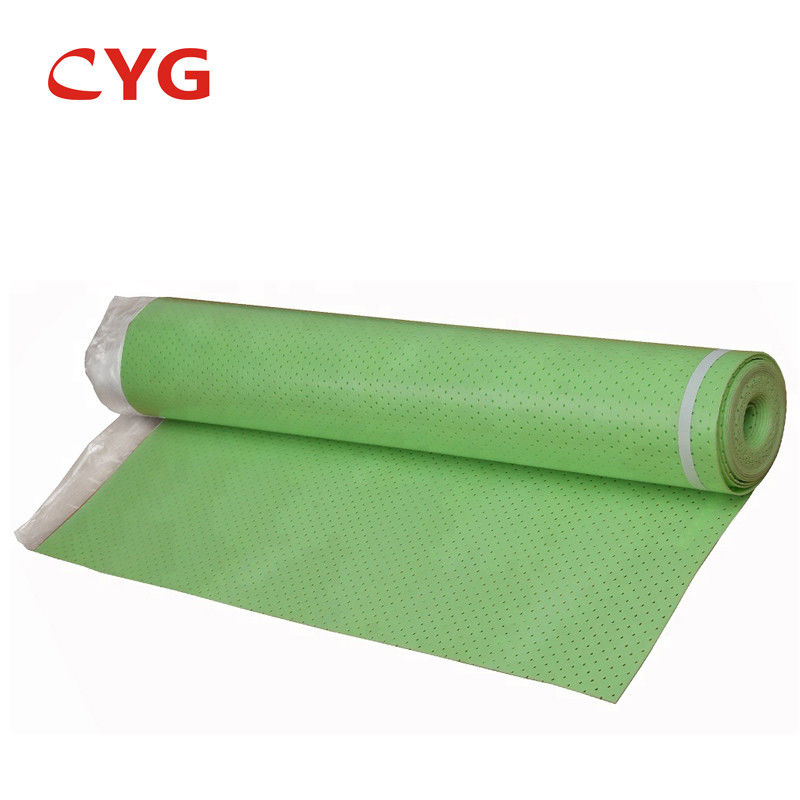

Product Details:
|
| Density: | 25-330KG/M3 | Thickness: | 1~50 Mm |
|---|---|---|---|
| Width: | 1.2-1.8 M | Size: | As Request |
| Color: | Silver,Black,blue And So On | Application: | Construction,floor |
| Name: | Insulation Materials For Building | Feature: | Cold Resistant,waterproof. Soundproof Eco-friendly And So On. |
| Temperature Range: | -40~80'C | ||
| High Light: | foam insulation sheets,building insulation foam |
||
Advantages
1) No smelling, non-toxic: Use ecologic material, RoHS approval
2) Soft and comfortable: Flexible with good elastic, stay the shape soon after press
3) Dampproof and waterproof: Closed cross linked structure
4) Heat insulation: Closed cross linked structure, keep warm
5) Anti slip: Embossed surface
6) Light and portable: About 500g/PCS
7) Durable: Good elastic and closed cross linked structure
Specifications
|
||||
| Property | Standard | Unit | Value | |
| Density | - | Kg/m³ | 83.00 | |
| Tensile Strength | Transverse | ISO-1798 | MPa | 0.65~0.67 |
| Longitudinal | 0.98~1.00 | |||
| Elongation | Transverse | ISO-1798 | % | 171.11~198.50 |
| Longitudinal | 164.30~192.60 | |||
| Tearing Strength | Transverse |
ISO-8067
|
Kn/m | 3.55~3.82 |
| Longitudinal | 4.80~5.00 | |||
| Operating Temperature Range | Internal | °C | (-40,+80) | |
| Water Absorption % Volume (Maximum) | Internal | % | 0.20 | |
| Thermal Conductivity | JIS A1412-2 | W/mK | 0.095 | |
| Shore - C | ASTM D2240 | °C | 55 | |
| Flammability | FMVSS302 | mm/min | - | |
CYG services
CYG TEFA offers the best solution for polyethylene foam production, We supply PE foam in rolls, length of each roll can be customized to meet customer’s requirement. The PE foam product can also be provided on the sheet as a request.Here support foam die- Cutting,Lamination Adhesive ,Sheeting, Perforating & Skiving.All the service are focused on quality of products and satisfied our customer.
A variety of THICKNESS and WIDTH can be Customized:
DENSITY: :25-330kg/m3 (kilogramme per metric cube).
THICKNESS, single layer sheeting of 0.5-15mm, and also laminating multiple layers of sheets up to 80mm.
WIDTH, produced in roll form of 1.0M – 1.8M, depending on foam density and thickness.
FORM of the finished product are converted into roll, sheet, laminated, die-cut and 3D glued, according to client's request.
CYG Main Product:
Cross-linked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat, camping mat, sleeping mat, yoga mat; etc.
Years Of Experience
17 years of production experience.
Scale Of Factory
17 production lines :9 production lines in Shenzhen and 8 production lines in Huzhou .
Production Capacity
Annual 6000 tons
Why choose us
1.The biggest and the most professional irradiation cross-linked polyethylene conductive foam manufacturer in China
2.The most complete cross-linked polyethylene foam products.
3.Certificate: UL, ISO, SGS, Rohs, Reach , CE
Cooperative Partner
iPhone, Samsung, Gree, Haier, TCL, Nike, Flextronics, General Motors, BYD, PPL, etc.
CYG TEFA offers the best solution for polyethylene foam production,
We supply PE foam in rolls, the length of each roll can be customized to meet customer’s requirement.
The PE foam product can also be provided on the sheet as a request.
Here support foam die- Cutting,Lamination Adhesive ,Sheeting, Perforating & Skiving.
All the service are focused on quality of products and satisfied our customer.
