Product Details:
|
| Density: | 25-300 Kg/m3 | Thickness: | 0.2-100mm |
|---|---|---|---|
| Size: | Custom Size | Feature: | Waterproof,flexible,Close Cell Structure |
| Advantage: | High Wear Resistant,eco-friendly | Function: | Waterproof,sound Insulation,thermal Insulation |
| Surface: | Smooth,flat Or Die Cut | Sample: | Free |
| Material: | PE,EPE,EVA,PU,etc | Type: | Protective Film,Other Heat Insulation Materials |
| High Light: | conductive polyethylene foam,anti static foam sheets |
||

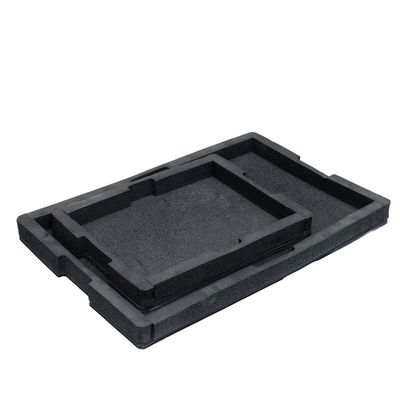

Anti Static Die Cut Packaging Foam ESD IXPE Polyethylene Sheets Foam Insulation
Material Specification of Conductive PE Foam
1.Basic Process
The said product is a close-cell, conductive foam. It is produced by compounding the PE resin with conductive fillers &
blowing agents to extrude certain sheets,then cross-linking and foaming. The basic process can be summarized to the following:
1 Pellitizing master batch by compounding PE resin with carbon black and AC foaming agents;
2 Extrude the said batch to make certain sheets with different thickness & width;
3 Cross link the said sheets under electric beam;
4 Make the cross linked sheets foam in foaming furnace
Specifications
| Material | IXPE |
| Type | Conductive IXPE Foam |
| Thickness | 1-100mm |
| Color | Black |
| Surface Resistance | 103-109 Ω |
| Certificate | SGS, ISO9001, ROHS |
| MOQ | No MOQ |
| Size | Custom |
| Product Keywords | ESD IXPE foam tray |
Features
1. With conduction path / network inside. excellent anti static performance;
2. It promotes the rapid release of electrostatic without using the environmental humidity. anti-static performance is not affected by the environmental humidity;
3. Permanent anti-static;
4. Excellent electrical conductivity, surface resistance: 103-109 Ω;
5. Buffer good performance: independent and fine pore closure;
6. High temperature resistance: IXPE maximum temperature 80℃
7. Chemical resistance: resistant to organic solvents, acids, bases, etc.;
8. No chemical corrosion: It has no corrosion to the components and packaging;
9. Heat insulation, sound insulation, water absorption, moisture;
10. Good processing performance, easy molding.
1. Medium and high quality are often customized to meet different market.
2. High Cost effective
3. High fire resistance
4. Good after-sale service
5. Strong capacity: One day one container
6. OEM service, 17 years manufacture experience, sample in stock can be offered in one working day
Our services
Factory direct selling with low price, sooner leadtime, customized service.
Comany info
CYG TeFa Co., Ltd has 17 years experience of producting XPE & IXPE foam. We're the biggest and the most professional irradiation crosslinked polyethylene conductive foam manufacturer in China and has the most complete crosslinked polyethylene foam products. Our main products are Crosslinked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat, camping mat, sleeping mat, yoga mat; Etc.
Application Field:
An ideal packing material for optoelectronic devices, integrated circuit, printed circuit board, communications, military products etc.
