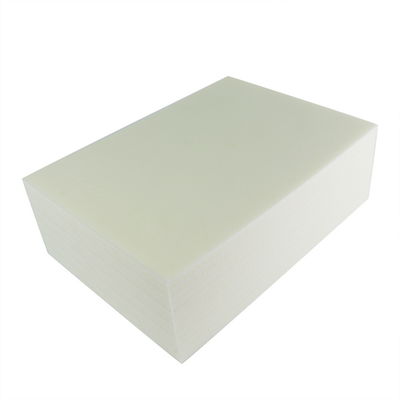

Closed Cell Cross Linked Polyethylene Foam , Xlpe Foam Sheet High Density

Certification
China Cyg Tefa Co., Ltd. certification
China Cyg Tefa Co., Ltd. certification
Customer Reviews
Reliable supplier with very good service and professional commercial team!

—— Zhang'R

CYG TEFA is a good foam supplier, they have an efficient marketing team, it is a responsible manufacturer.

—— Mr.Liu

Very good quality IXPE foam and quick leadtime, the professional team always provide best service for us.

—— Kim

I'm Online Chat Now

Closed Cell Cross Linked Polyethylene Foam , Xlpe Foam Sheet High Density

Closed Cell Cross Linked Polyethylene Foam , Xlpe Foam Sheet High Density
Closed Cell Cross Linked Polyethylene Foam , Xlpe Foam Sheet High Density Closed Cell Cross Linked Polyethylene Foam , Xlpe Foam Sheet High Density Closed Cell Cross Linked Polyethylene Foam , Xlpe Foam Sheet High Density Closed Cell Cross Linked Polyethylene Foam , Xlpe Foam Sheet High Density

Large Image :  Closed Cell Cross Linked Polyethylene Foam , Xlpe Foam Sheet High Density

Product Details:
Place of Origin: China
Brand Name: CYG
Certification: ISO9001, ISO14001, IATF16949,FMVSS 302,UL94 HF-1,RoHS,CE,etc.
Model Number: CYG-5256
Payment & Shipping Terms:
Minimum Order Quantity: 3000 SQM
Price: USD 0.19~2.19 SQM
Packaging Details: Poly bags or customized
Delivery Time: 5~12 Work days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 500 tons per month

Closed Cell Cross Linked Polyethylene Foam , Xlpe Foam Sheet High Density

Description
Shape: Roll Structure: Closed Cell
Density: 28~333 Kg/m3 Thickness: 1~60 Mm
Material: PE Feature: Waterproof,Eco-friendly,Close Cell Structure
High Light:

closed cell foam insulation roll

,

xlpe foam sheet

IXPE Foam Cross Linked Polyethylene Foam Sheet Density



Electronic cross-linked polyethylene foam also named Physical crosslinked polyethyele foam, Irradiation crosslinked polyethylene foam.Common abbreviations IXPE foam, IXLPE foam.It is made of low-density polyethylene (LDPE), AC foaming agent and other powders after being melted, mixed and extruded, and then foamed at high temperature. IXPE has finer cells, smoother surface and better mechanical properties than XPE.
Production process: compounding-extrusion-irradiation-foaming.
Note: IXPE foam can be made anti-static (we will talk about anti-static IXPE later), but XPE cannot (theoretically it is possible, but our company does not currently produce).


Polyethylene foam sheets xlpe foam is made of Low-Density PE Polymer. Commonly made and used as an insulation & protective material for various Industry applications.CYG foam is a strong, resilient closed-cell foam and it has several outstanding physical properties such as;

  • Closed cell cross-linked polyethylene foam
  • Excellent thermal insulation
  • Lightweight
  • Cost-effective
  • Easy to fabricate
  • Non-dusting
  • Superb strength, and tear resistance
  • High shock absorption
  • Flexibility



Specification


  • Foam Type: XPE FOAM / XLPE FOAM
Property Standard Unit Value
Density - Kg/m³ 100.00
Tensile Strength Transverse ISO-1798 MPa 0.89~0.90
Longitudinal 0.98~1.04
Elongation Transverse ISO-1798 % 130.30~148.50
Longitudinal 130.00~158.20
Tearing Strength Transverse

ISO-8067



Kn/m 5.87~6.00
Longitudinal 6.22~6.54
Compression 25% ISO-3386-1 kPa 185.20
Compression 40% ISO-3386-1 kPa 252.40
Compression 50% ISO-3386-1 kPa 316.80
Compression Set 25% 0.5H ISO-1856 % 7.10
Compression Set 25% 24H ISO-1856 % 3.30
Operating Temperature Range Internal °C (-40,+80)
Water Absorption % Volume (Maximum) Internal % 0.30
Thermal Conductivity JIS A1412-2 W/mK 0.073
Shore - C ASTM D2240 °C 55
Flammability FMVSS302 mm/min -

Additional Information

● All tests were carried out in 23°C ± 2.

● Data represents typical values measured on a 8mm thick specimen and should be considered as guidelines only.





Features

  • Low density
  • Good elasticity
  • Good toughness
  • Thermal insulation
  • Energy saving
  • Noise reduction
  • Sound insulation
  • Anti-condensation
  • Corrosion and aging
  • Convenient



Application




  • Insulation on the dashboard, door panels, door armrests
  • Lightweight product solution for automobile air duct
  • Using for head pillow case by PIP filling&foaming technology
  • Waterproof and soundproof car door material
  • As damping and soundproofing foam products around the front of the cockpit
  • Excellent Roof / Head Lining thermal insulation solutions
  • Automotive NVH products solutions






About CYG


CYG TEFA is the earliest PE foam manufacturing with scale production in China since 2002.Mainly produce XPE FOAM,IXPE FOAM,IXPP FOAM and ESD PRODUCT(Foam type: PE/EVA/PU/EPE/PP Plastic).Annual production capacity is about 6000 tons.2 bases one in Shen zhen and an other in Huzhou,with total 17 production lines.CYG Management control system: Kingdee / OA / Oracle.CYG have a professional team and technology.More than 30 R&D staff.Through the great variety of our products we provide people with a warm and quiet home and working environment.

  • Management control system: Kingdee / OA / Oracle



  • R & D team

11 employee
Investment rate: 4% to 10%
Responsible for : Improving available product / Technology improving / New product development / New devices


  • On-going project

IXPP project (three years: Proposal stage - Develop - Sampling - Approved product- Small quantity supply for testing


FQA



1) Are the materials in your factory ECO-fiendly,any toxic?
A: All of our products and material are ECO-friendly,non-toxic, and odorless material can be customized.

2) Are the material in your company fit for children?
A: Yes, we have non-toxic ,odorless ,grade A material that suitable for children’s products, and can even meet food grade

3) Can you custom-made as requested?
A: Actually ,all the products made in my factory by far are customized, my factory also offer OEM and ODM service.

4) Can you offer free samples?
A: Yes,we can offer free samples of small sizes (such as A4), but the shipping costs is for the client.

5) What's the delivery time?

A: It takes usually 7-15 days for normal orders.
