Product Details:
|
| Material: | XPE Foam, XLPE Foam, IXLPE Foam | Clients:: | Daking, Gree, LG |
|---|---|---|---|
| Thickness: | 0.2mm-100mm | Width: | 1m-2m, Customized |

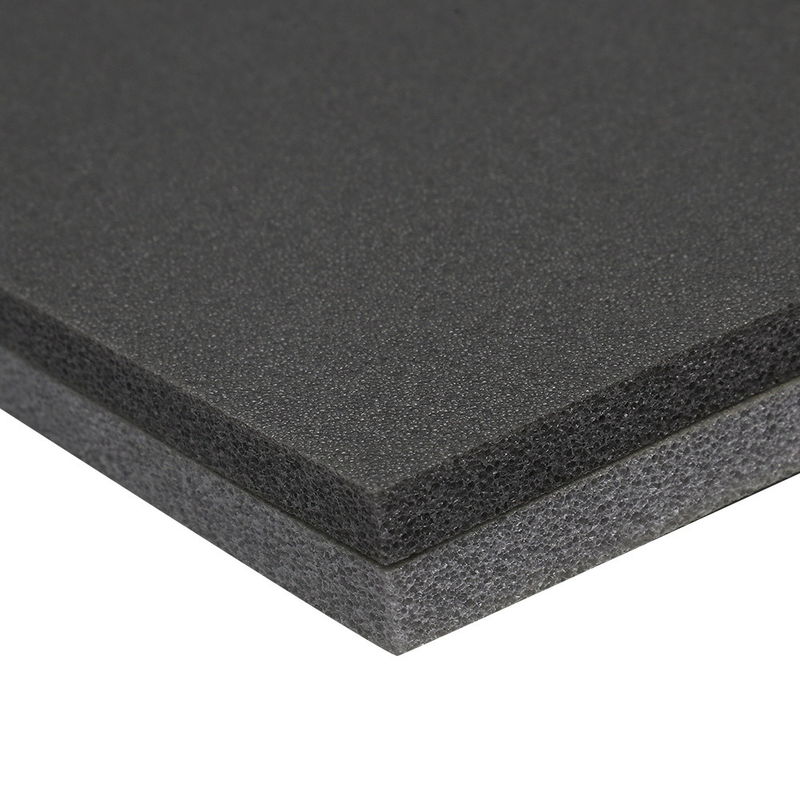

Crosslinked XLPE foam (in Sheet or in Roll):
Color: Black, White and others
Density: 15 Kg/ m3 to 144kg/m3
Size: 2000 X 1000 X 100 mm , or in roll with the 1000mm width, or as required
Light weight, good elasticity
The heat reflective foam combines an inner core of fire retardant closed cell PE/XPE foam with two external layers of high performance reflective aluminum foils and a special external coating of gold cloured antiglare with reinforced netting. Both external surfaces reflect radiant heat and the fire retardant inner core prevents heat flowTransferring from one surface to the next.
XLPE Foam Technical Specification |
||||||||
| Testing Item | Properties | |||||||
| 5 times | 8 times | 10 times | 15 times | 20 times | 25 times | 30 times | 35 times | |
| Density kg/m3 | 200±30 | 125±15 | 100±10 | 66.7±8 | 50±6 | 40±4 | 33.3±3 | 28.6±2 |
| Shore Hardness ° | 60~70 | 50~60 | 45~50 | 35~45 | 30~35 | 25~30 | 18~25 | 13~18 |
| Water Absortion Rate (23ºC±, 24h) g/cm3 | ≤0.02 | ≤0.02 | ≤0.03 | ≤0.03 | ≤0.04 | ≤0.04 | ≤0.05 | ≤0.05 |
| Thermal conductivity(W/m.k) | ≤0.092 | ≤0.082 | ≤0.072 | ≤0.062 | ≤0.053 | ≤0.047 | ≤0.0414 | ≤0.038 |
| Tensile strength (L/W) MPa | ≥1.35/1.08 | ≥1.12/0.89 | ≥0.88/0.71 | ≥0.68/0.56 | ≥0.39/0.33 | ≥0.33/0.25 | ≥0.25/0.20 | ≥0.20/0.16 |
XLPE foam, It is made of low-density polyethylene (LDPE), AC foaming agent and other powders after being melted, mixed and extruded, and then foamed at high temperature.IXPE foam also named irradiation crosslinked polyethylene foam.It is made of low-density polyethylene (LDPE), AC foaming agent and other powders after being melted, mixed and extruded, and then foamed at high temperature. IXPE has finer cells, smoother surface and better mechanical properties than XLPE.
CYG TEFA Co., Ltd has 21 years of production experience.
We're the biggest and the most professional closed cell cross linked polyolefin foam manufacturer in China and has the most complete cross-linked polyethylene foam products.
Our main products are Crosslinked Polyolefin foam material, IXPE foam, XPE foam, IXPP foam Conductive IXPE foam; ESD foam tray, Foam packing material; Building and HVAC insulation material; Flooring underlayment; Camping mat, military mat; Etc.
