|Color:||Green Or Customized||Density:||25-33kg/m3|
|Type:||Other Heat Insulation Materials||Color:||Black/White/Graycustomizable|
|Application:||Construction||Feature:||Flexible Soft Insulation,waterproof. Soundproof Eco-friendly And So On.,thermal Insualtion,Fireproof|
closed cell foam insulation,
foam insulation sheets

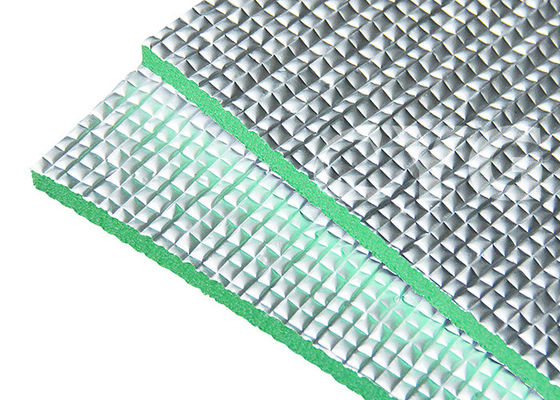

Reflective Aluminum Foil Foam Heat/Thermal Insulation Roll for Wall/Building/Construction
The two major types of crosslinked PE foam are:
1. Irrdiated Crosslinked polyethylene foam (IXPE foam)is very fine celled microcellular foam. Irradiated
Crosslinked foam is used for medical applications, heart forming, and high end protective packaging and consumer products. This foam can actually be printed on very clearly.
2. Chemically crosslinked foam(XPE foam) also has good physical properties, but has a larger more random cell structure. Chemically crosslinked foam can also be used for packaging, heat forming and a large variety of applications. These foams are available in a wide variety of formulations including EVA modified to make the foams more pliable, as well as with fire retardants. Crosslinked foams are available in both rolls and sheets form, and in a variety of colors, as well as natural, white and black.
|Density||200 ± 30||125 ± 15||100 ± 10||66.7 ± 8||50 ± 6||40 ± 4||33.3 ± 3|
(23 ° C 24h)g/ cm ³
|≤ 0.02||≤ 0.02||≤ 0.03||≤ 0.03||≤ 0.04||≤ 0.04||≤ 0.05|
|Thermal conductivity||≤ 0.092||≤ 0.082||≤ 0.07||≤ 0.062||≤ 0.053||≤ 0.047||≤ 0.041|
|Tensile strength(mpa)||L||≥ 1.35||≥ 1.12||≥ 0.88||≥ 0.68||≥ 0.39||≥ 0.33||≥ 0.25|
|M||≥ 1.08||≥ 0.89||≥ 0.71||≥ 0.56||≥ 0.33||≥ 0.25||≥ 0.20|
|Tesibility||L||≥ 260||≥ 230||≥ 210||≥ 190||≥ 170||≥ 160||≥ 140|
|M||≥ 220||≥ 200||≥ 185||≥ 170||≥ 150||≥ 135||≥ 130|
|Tearing strength||L||≥ 5.90||≥ 4.80||≥ 3.60||≥ 2.80||≥ 1.80||≥ 1.60||≥ 1.35|
|M||≥ 7.10||≥ 5.40||≥ 4.00||≥ 3.30||≥ 2.30||≥ 2.00||≥ 1.70|
1. Light weight, good elasticity
2. Weatherproof and waterproof
3. Flame retardant
4. Sound absorption
5. Heat insulation
6. Elastic and flexibility
7. Shock absorption
8. High reflection
9. Closed cell foam
1. Heat Insulation:
Singlefoaming structure can reduce the loss of heat between air convections, suitable for making heat preservation pipes and boards. Good anti-dew capability, suitable for humid environments like refrigerators, air-conditioners and ice houses, etc.
2. Cushion Capability: Semi-hard quality foams have good rebound capabilities after strong impact, suitable for the packing of instruments, semi-conductors and electronics, etc.
3. Sound Absorption:
Good sound and noise absorption capability, suitable for sound absorption and insulation parts of automobiles, electro-motors and other equipment and environments with loud noises.
4. Shaping Capability:
Good heat endurance and ductility capability with even density, suitable for making deep interior parts like shaping in vacuum and hot environments, like the air conditioning vaporizing tank of automobiles, hot-shaped peak canopy of vehicles and shoes, etc.
5. Good chemical, oil, acid and alkali durability capabilities.
It is safe and odorless, easy for machining and casting, and can be mixed with many other materials. It has a wide developing area as a new environmentally-safe material.
PE foam manufacturer:
Factory direct selling with competitve price, sooner leadtime, better customized services.
Samples in stock can be arranged in one working day.
Density,thickness,wide,length,color and so on,they all can customized.
CYG TEFA Co., Ltd. is a subsidiary of Shenzhen Changyuan Croup Co., Ltd (stoke code, 600525).
CYG TEFA Co., Ltd, a national high-tech company, established in December of 2002.; We're the biggest and the most professional irradiation crosslinked polyethylene conductive foam manufacturer in China and has the most complete crosslinked polyethylene foam products. Now we have 2 production bases in Shenzhen, Hangzhou, 17 production lines of all kinds, with annual production capacity of 6000 tons; Our main products are Crosslinked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat, camping mat, sleeping mat, yoga mat; etc.
