Product Details:
|
| Density: | 25-333kg/m3 | Material: | LDPE |
|---|---|---|---|
| Product Name: | Xpe Closed Cell Foam Expanded Polyethylene Foam Products Suppliers | Width: | 1m-2m, Customized |
| Thickness: | 1-100mm | Shape: | Sheet Or Roll |
| High Light: | closed cell foam insulation roll,xlpe foam sheet |
||

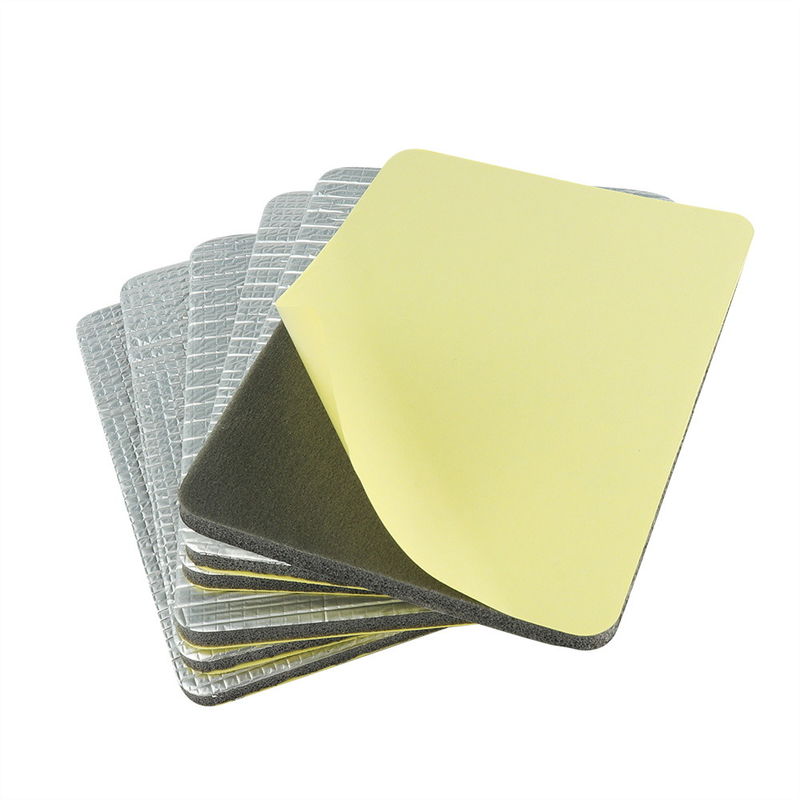

aluminum foil fireproof wall heat insulation laminated pe foam reflective foil
Polyethylene foam is closed-cell, meaning it consists of cells so tightly packed together that it gives the appearance of one uniform structure.
The reality is that the individual cells within polyethylene foam do not physically connect to one another.
This cellular formation is similar to fish caught in a fisherman's net.
From a critical distance, the net appears to be one massive object.
However, upon closer examination, it becomes apparent that there is numerous individual fish packed tightly together that the result is the aforementioned appearance of singularity.
Specifications
|
||||
| Property | Standard | Unit | Value | |
| Density | - | Kg/m³ | 28.00 | |
| Tensile Strength | Transverse | ISO-1798 | MPa | 0.21~0.22 |
| Longitudinal | 0.22~0.24 | |||
| Elongation | Transverse | ISO-1798 | % | 95.30~103.50 |
| Longitudinal | 84.60~91.30 | |||
| Tearing Strength | Transverse |
ISO-8067
|
Kn/m | 1.58~1.62 |
| Longitudinal | 1.77~1.82 | |||
| Compression 25% | ISO-3386-1 | kPa | 39.60 | |
| Compression 40% | ISO-3386-1 | kPa | 66.80 | |
| Compression 50% | ISO-3386-1 | kPa | 94.80 | |
| Compression Set 25% 0.5H | ISO-1856 | % | 15.20 | |
| Compression Set 25% 24H | ISO-1856 | % | 5.40 | |
| Operating Temperature Range | Internal | °C | (-40,+80) | |
| Water Absorption % Volume (Maximum) | Internal | % | 0.50 | |
| Thermal Conductivity | JIS A1412-2 | W/mK | 0.040 | |
| Shore - C | ASTM D2240 | °C | 22 | |
| Flammability | FMVSS302 | mm/min | - | |
Raw material: LDPE, PE foam+Alu foil
Density: 25~333kg/m3
Length: customized
Wide: 70~1800 mm
Thickness:
xpe 2~3mm 3~12mm
Ixpe 0.1~0.5mm 0.5~3mm, 3~10mm
Color: black,white and gray,other colors can be customized
Shore hardness: 10~80 degree
Reflective:96%~97%
Structure:Closed cell
Surface smooth: Alu
Flammability:B1 grade
Refractoriness:100-150 degree
Thermal Conductivity:0.040~0.095 w/m.k
Water Absorption:(23degree,24h) 0.2~0.6%
Tearing Strength: 0.2~1.8 KN/m
Elongation at break :100%~240%
Tensile Strength: 0.2~1.6 Mpa
Compressed distortion: 2%~10%
Size change rate: -4%`-8%
Thermal conductivity: 0.040 ~0.095 w/m.k
Certificate: ISO9001,REACH,ROSH,IATF16949,CE
Packaging:roll, tape, gasket or seal formats
Features
1. Light weight, good elasticity
2. Weatherproof and waterproof
3. Flame retardant
4. Sound absorption
5. Heat insulation
6. Thermal insulation
7. Elastic and flexibility
8. Shock absorption
Company info
CYG TEFA is the earliest PE foam manufacturing with scale production in China since 2002.Mainly produce XPE FOAM,IXPE FOAM,IXPP FOAM and ESD PRODUCT(Foam type: PE/EVA/PU/EPE/PP Plastic).Annual production capacity is about 6000 tons.2 bases one in Shen zhen and an other in Huzhou,with total 17 production lines.CYG Management control system: Kingdee / OA / Oracle.CYG have a professional team and technology.More than 30 R&D staff.Through the great variety of our products we provide people with a warm and quiet home and working environment.
IXPP project (three years: Proposal stage - Develop - Sampling - Approved product- Small quantity supply for testing
11 employee
Investment rate: 4% to 10%
Responsible for : Improving available product / Technology improving / New product development / New devices
Qur services
Factory direct selling with competitve price, sooner leadtime,better customized services.
Samples in stock can be arranged in one working day.
