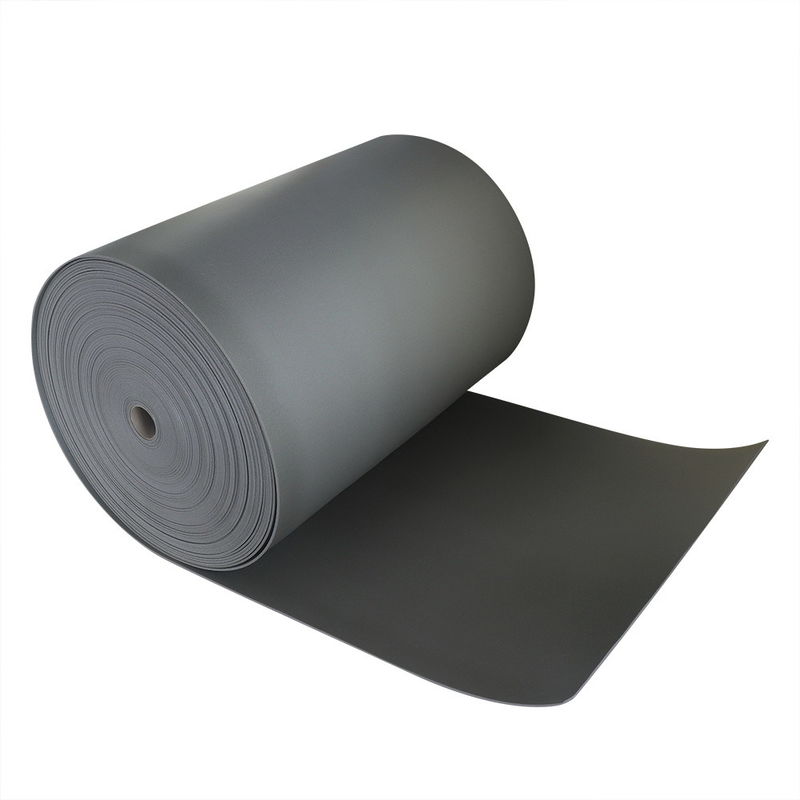

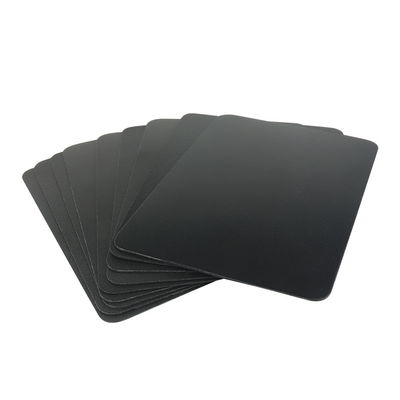

Polyethylene Gasket Heat Insulation Material LDPE Material Plastic Roll Thermal Sheet

Polyethylene Gasket Heat Insulation Material LDPE Material Plastic Roll Thermal Sheet

    • Polyethylene Gasket Heat Insulation Material LDPE Material Plastic Roll Thermal Sheet
    • Polyethylene Gasket Heat Insulation Material LDPE Material Plastic Roll Thermal Sheet
    • Polyethylene Gasket Heat Insulation Material LDPE Material Plastic Roll Thermal Sheet
  • Polyethylene Gasket Heat Insulation Material LDPE Material Plastic Roll Thermal Sheet

    Product Details:

    Place of Origin: China
    Brand Name: CTF
    Certification: ISO9001,REACH,ROSH,SGS,IATF16949
    Model Number: XPE Foam

    Payment & Shipping Terms:

    Minimum Order Quantity: 3000 sqm
    Price: USD 0.8~3.1 Kg/m3
    Packaging Details: Poly bags or customized
    Delivery Time: 5~12 work days
    Payment Terms: L/C, T/T, D/P,
    Supply Ability: 500 tons per month
    Contact Now
    Detailed Product Description
    Density: 80 Kg/m3 Or Customized Shore Hardness: 15~18 Degree
    Material: Polyethylene Foam Raw Material: LDPE
    Application: Automotive Flammability: B1 Grade



    Product Introduction


    Chemical cross-linked polyethylene foam(XPE) made by high temperature foaming after extrusion,cross-linked and foaming at the same time.it is the ideal foam for applications where support and durability are crucial.


    Specification




    PE FOAM DATA
    Density 28-300kg/m3
    Roll size

    Width:1060mm-1080mm
    Length:300m-500MM

    Thickness 1-10mm,Max 100mm
    Regular Foam Color black, white, grey, customized color are available
    Delivery Time 7-14 workdays
    Certificated SGS, REACH, RoHs,ISO9001-14001,IATF16949
    Usage Construction thermal insulation,Automotive &packing etc
    Characteristics

    · Excellent heat insulator

    · Low heat conduction

    · Durable and high resilience

    · Resistance to chemical and grease subjection

    · Environmentally friendly with non toxic properties

    · Resistance to wear and tear

    · Excellent thickness

    · Weather resistant

    · Simple to die cut or slit






    Features



    1. Excellent heat insulation performance: Low thermal conductivity, <0.040W/m · K, less than polystyrene, similar to polyurethane, as the excellent insulation, heat insulation materials;
    2. High apparent density: Apparent density reachs to 28± 2kg/m ³ , superior to polyurethane and phenolic foam; Reduces the building's weight, load of the building and cost of the structure. Also easy and fast to construct, and improve efficiency;
    3. Qualified combustion performance: Combustion performance reach the B2 level of building and decoration material class, the same as polystyrene;
    4. Good corrosion resistance and ageing resistance: Resistance to acid and organic solvents, long-term exposure to the Sun, minor aging, special anti-aging treatment but can be done;
    5. Superior production technology to meet different needs: Continuous and controllable production process meets different requirements of the length and width, effectively reducing the waste during transportation and installation.



    Applications


    XPE FOAM Application in automotive NVH

    Lightweight
    Cost-effective
    Easy to fabricate
    Extremely low odour
    Non toxic
    High shock absorption
    Flexibility



    About CYG



    CYG TEFA Co., Ltd has 17 years of production experience. We're the biggest and the most professional irradiation cross-linked polyethylene conductive foam manufacturer in China and has the most complete cross-linked polyethylene foam products. Our main products are Cross-linked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat, camping mat, sleeping mat, yoga mat; etc. Our clients are iPhone, Samsung, Gree, Haier, TCL, Adidas, Nike, Flextronics, General Motors, BYD, PPL, etc. Now, we have 2 factories and 17 production lines...




    FQA



    1)What is PE foam?


    Polyethylene foam is a strong, resilient closed-cell foam. Ideally foam material suited as the material or part of a material required in products requiring a shock absorbing, vibration dampening, insulation, barrier or buoyancy component etc.

    2) How can I know the suitable foam density I need?

    Our PE foam density is between 25 kg/m3 and 240 kg/m3
    We can provide the best solution for you according to the application, Density, hardness, thickness.And The free sample is available for your confirmation and text

    3) What's the application of insulation?


    Our insulation products are widely used on roofing, external wall, floor, HVAC pipe, transportation and any other places needing insulation.
    Low-density polyethylene foam has numerous applications because of its many desirable properties including water-resistance, chemical resistance, energy-absorbance, buoyancy and cushioning characteristics. Compressive strength is greater in denser foams, decreasing as density decreases. Low-density foams tend to exhibit more compressive creep, meaning they become less thick over time, than higher-density foams.




    Polyethylene Gasket Heat Insulation Material LDPE Material Plastic Roll Thermal Sheet

    Polyethylene Gasket Heat Insulation Material LDPE Material Plastic Roll Thermal Sheet


    Polyethylene Gasket Heat Insulation Material LDPE Material Plastic Roll Thermal Sheet
