Product Details:
|
| Features: | Anti-fire | Material: | PE, PE Foam |
|---|---|---|---|
| Thickness: | 0.5-100mm | Size: | As Requests |
| Density: | 25-28kg/m3 | Color: | Customer-made |
| Max Width: | 1.5m | Length: | As Requests |
| Certificate: | ROHS REACH | Application: | Roof Ceiling Wall Duct |
| Port: | Shenzhen |
CYG TEFA Co., Ltd. is a subsidiary of CYG Group Co.,Ltd (stoke code ,600525). CYG TEFA CO.,LTD established in December of 2002.
We are the leading manufacturer for XPE , IXPE foam,ESD foam for more than 15 years, all our products can be used for thermal insulation,waterproof,shockproof,etc. and also our products get the UL, ISO, SGS, Rohs, Reach , CE approval. and we have 14 production lines for production.Hope to cooperate with you.

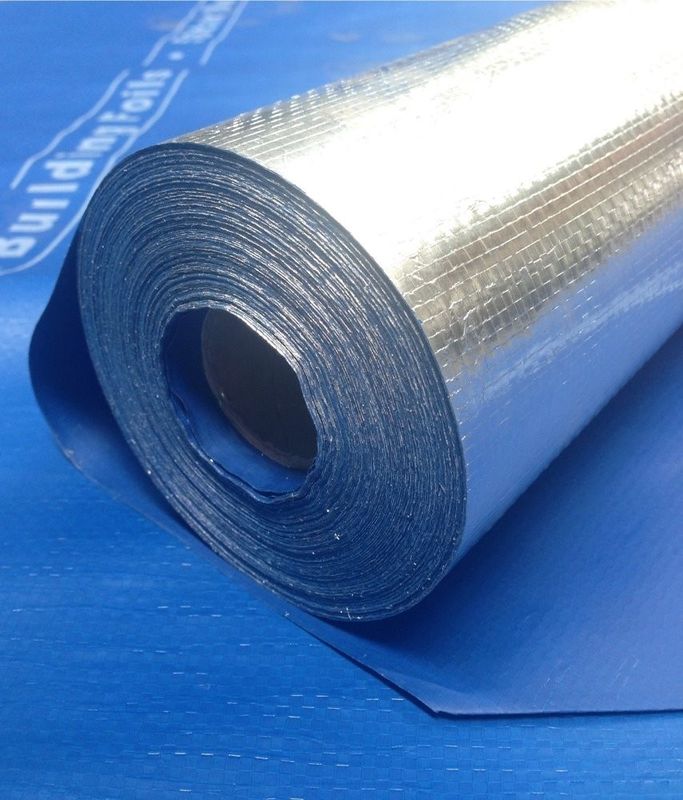

1.Foil+XPE Foam+foil
2.Thickness 3mm, 4mm, 5mm or as requests
3.Size:1.2M width* 40M length,also sizes available upon requests
4.Anti-flaming,thermal insulation
5.Light,dustfree,fire-retardant,Environmental
6.ROHS,REACH
Good pliability
CYG XPE FOAM rubber insulating products with good flexibility make them suitable for bent and irregular pipes in construction, saving both labor force and cost.
Vibration Resistance
CYG XPE FOAM heat-proof and heat-preservation plastic-rubber with high elasticity ,can reduce the vibration and resonance of the hot /cold water pipes utmost.
Good fire –blocking
This product has fire-blocking and smoke-reducing property , when burned , its density is very low and doesn’t melt, without any small fire ball left and with the merit of self-extinguishing.
According to the standard of GBB8624-1997 Method for grading flammability of construction material, this is the flame resistant product of grade B1 enabling to secure the satiety.
Low conductivity factor
Conductivity of this material is 0.034w/mk at an average°C. As this product has high heat-releasing ratio, it can get the same heat-preservation effect at less half thickness of other insulating product under the same. condition, saving not only space but also cost.
Specifications
payment terms:TT/LC
MOQ:1) 3mm-4mm thickness,MOQ3000sqm
2)5mm-7mm thickness,MOQ2000 sqm
3)thickness more than 8mm,MOQ 1000 sqm
delivery date: from the Date of Order:15days
Loading Port: Shekou,Shenzhen,China
Advantages
1.excellent heat insulation performance: conducive ground insulation and keep warmth;
2.high apparent density and compressive strength: help to ground leveling, reduce construction problems and ease, efficiency, improves work efficiency;
3.sound insulation, reducing vibration;
4.good mildew-resistant corrosion-resistant performance: resistance to acid and organic solvents. low water absorption rate, effectively prevent mildew, protect the floor;
5.superior production technology to meet different needs: continuous and controllable production process meets different requirements of the length and width, effectively reducing the waste during transportation and installation.
Foam specification
thermal conductivity | <0.040W/m · k |
apparent density | ≤28±2kg/m ³ |
compressive strength | ≥0.185 |
combustion level | B2 |
water absorption | ≤0.05g/cm2 |
Length | ≤300M |
width | ≤2.5M |
Products’ main technical data sheet:
Reflectivity | 96%-97% |
Thermal conductivity | 0.034 |
Water vapor transmission | 0.013g/kpa |
Flame retardant | Class A /Class 1 |
Temperature range | -50 °c +90°c |
OEM Accepted | Yes |
Regular bubble size | 10*4mm, 10*6mm, 20*4mm,20*6mm, |
Regular EPE/XPE/IXPE thickness | 2-10mm |
Item name | Index |
|
Flame ability | Class 1/ Class A |
|
Temp Range | -50F to 180F |
|
Emissivity | 0.057 |
|
Reflectivity | 0.943 |
|
Water Vapor Permeability | 0.02 Perms |
|
Resistance to Fungi | Does Not Promote |
|
Corrosiveness | Pass |
|
Thermal Resistance (3.5" cavity) | R-15.2 (Heat Flow Down), R-8.5 (Horizontal Heat Flow) |
|
Product Uses
- Insulation for refrigerator and air-conditioner
– Various kinds of insulation tubes
– Thermal insulation for floor
– Anti-dew materials for sink
– Cushioning materials
– Various kinds of gaskets
– Thermal insulation for energy saving equipments
– Duct cover, wall partition strip etc. Fire Rating
acoustic insulation foam material
Certificate authentication :
We complied with SGS, ROHS ,ISO9001,UL and other international standards.
Any size can be customized .
Contact me and get more details
| About CYG |
Main Product
Cross-linked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat, camping mat, sleeping mat, yoga mat; etc.
Years Of Experience
17 years of production experience.
Scale Of Factory
9 production lines in Shenzhen and 8 production lines in Huzhou .
Production Capacity
Annual 6000 tons
Why choose us
1.The biggest and the most professional irradiation cross-linked polyethylene conductive foam manufacturer in China
2.The most complete cross-linked polyethylene foam products.
3.Certificate: UL, ISO, SGS, Rohs, Reach , CE
Cooperative Partner
iPhone, Samsung, Gree, Haier, TCL, Nike, Flextronics, General Motors, BYD, PPL, etc.
CYG TEFA offers the best solution for polyethylene foam production,
We supply PE foam in rolls, the length of each roll can be customized to meet customer’s requirement.
The PE foam product can also be provided on the sheet as a request.
Here support foam die- Cutting,Lamination Adhesive ,Sheeting, Perforating & Skiving.
All the service are focused on quality of products and satisfied our customer.
