Product Details:
|
| Material: | PE | Thickness: | 0.5 -100 Mm |
|---|---|---|---|
| Size: | Customized | Density: | 25-330 Kg/m3 |
| Color: | Black,red, White, Blue,gray, Green, Yellow,red Etc. | Samples: | Free |
| Delivery Time: | 10-20 Working Days | Loading Port: | Shenzhen Port |
| Packaging: | PE Bags Or As Requests | Characteristic: | Shockproof, Durable,waterproof,high Elasticity,environmental |
| Foaming: | Chemically Crosslinked XPE Foam | Expansion Ratio: | 3-40 Times |
| Hardness: | 10-80 Shores | Port: | Shenzhen |
CYG TEFA Co., Ltd. is a subsidiary of CYG Group Co.,Ltd (stoke code ,600525). CYG TEFA CO.,LTD established in December of 2002.
We are the leading manufacturer for XPE , IXPE foam,ESD foam for more than 15 years, all our products can be used for thermal insulation,waterproof,shockproof,etc. and also our products get the UL, ISO, SGS, Rohs, Reach , CE approval. and we have 11 production lines for production.Hope to cooperate with you.
Main product:XPE foam (Chemical cross linked PE foam) IXPE Foam ( Physical cross lined PE foam ) XLPE foam , ESD PE foam, Conductive PE foam, EVA foam , Foam with aluminum foil , Foam with adhesive , all kinds foam products.
Company website: www.xpe-foam.com

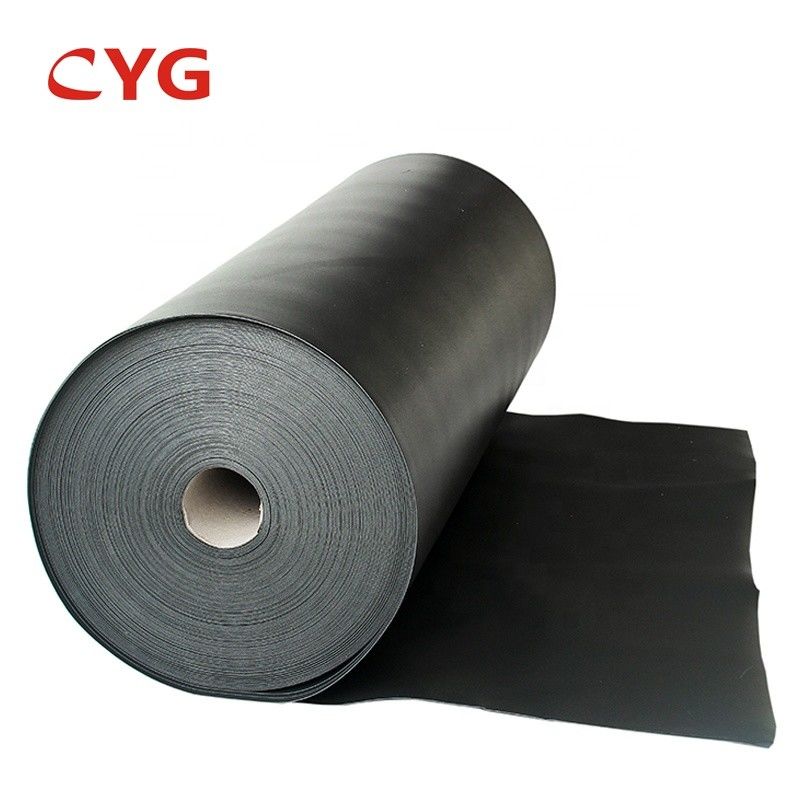

Acoustic Polyethylene Foam Underlay
1.Product description
chemical crosslinked polyethylene XPE foam supplier ( PE foam,XPE foam,IXPE foam)
Two major types of crosslinked PE foam are:
1.Physically Crosslinked polyethylene foam(IXPE FOAM) is very fine celled microcellular foam. Iriadiated crosslinked foam is used for medical applications, heart forming, and high end protective packaging and consumer products. This foam can actually be printed on very clearly.
2.Chemically crosslinked polyethylene foam(XPE FOAM) also has good physical properties, but has a larger more random cell structure. Chemically crosslinked foam can also be used for packaging, heat forming and a large variety of applications.
Features:
1. Light weight, good elasticity
2. Weatherproof and waterproof
3. Flame retardant
4. Sound absorption
5. Heat insulation
6. Thermal insulation
7. Elastic and flexibility
8. Shock absorption
Specifications
payment terms:TT/LC
MOQ:1) 3mm-4mm thickness,MOQ3000sqm
2)5mm-7mm thickness,MOQ2000 sqm
3)thickness more than 8mm,MOQ 1000 sqm
delivery date from the Date of Order:15-20 workingdays
Technical Index
Density | 200±30 | 125±15 | 100±10 | 66.7±8 | 50±6 | 40±4 | 33.3±3 | |
Hardness | 60-70 | 50-60 | 45-50 | 35-45 | 30-35 | 2-30 | 18-25 | |
Water absorption (23°C 24h)g/cm³ | ≤0.02 | ≤0.02 | ≤0.03 | ≤0.03 | ≤0.04 | ≤0.04 | ≤0.05 | |
Thermal conductivity | ≤0.092 | ≤0.082 | ≤0.07 | ≤0.062 | ≤0.053 | ≤0.047 | ≤0.041 | |
Tensile strength(mpa) | L | ≥1.35 | ≥1.12 | ≥0.88 | ≥0.68 | ≥0.39 | ≥0.33 | ≥0.25 |
| M | ≥1.08 | ≥0.89 | ≥0.71 | ≥0.56 | ≥0.33 | ≥0.25 | ≥0.20 |
Tesibility | L | ≥260 | ≥230 | ≥210 | ≥190 | ≥170 | ≥160 | ≥140 |
| M | ≥220 | ≥200 | ≥185 | ≥170 | ≥150 | ≥135 | ≥130 |
Tearing strength | L | ≥5.90 | ≥4.80 | ≥3.60 | ≥2.80 | ≥1.80 | ≥1.60 | ≥1.35 |
2.Advantages
chemical crosslinked polyethylene XPE foam supplier
1. Heat Insulation:
Singlefoaming structure can reduce the loss of heat between air convections, suitable for making heat preservation pipes and boards. Good anti-dew capability, suitable for humid environments like refrigerators, air-conditioners and ice houses, etc.
2. Cushion Capability: Semi-hard quality foams have good rebound capabilities after strong impact, suitable for the packing of instruments, semi-conductors and electronics, etc.
3. Sound Absorption:
Good sound and noise absorption capability, suitable for sound absorption and insulation parts of automobiles, electro-motors and other equipment and environments with loud noises.
4. Shaping Capability:
Good heat endurance and ductility capability with even density, suitable for making deep interior parts like shaping in vacuum and hot environments, like the air conditioning vaporizing tank of automobiles, hot-shaped peak canopy of vehicles and shoes, etc.
5.Good chemical, oil, acid and alkali durability capabilities.
It is safe and odorless, easy for machining and casting, and can be mixed with many other materials. It has a wide developing area as a new environmentally-safe material.
3.our services
Factory direct selling with competitve price, sooner leadtime,better customized services.
Samples in stock can be arranged in one working day.
4.Company info
CYG TEFA Co.,Ltd has 15 years of production experience.We're the biggest and the most professional irradiation crosslinked polyethylene conductive foam manufacturer in China and has the most complete crosslinked polyethylene foam products. Our main products are Crosslinked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat,camping mat,sleeping mat, yoga mat;etc
Now, we have 2 factories and 8production lines. .
Contact;
skype: amyxiao7
whatsapp:0086-13510081032
5.Application Field
chemical crosslinked polyethylene XPE foam supplier
Packaging:electronics, components, appliances and other demanding protection and packaging materials
Vehicle
automotive interior decoration, ceiling, dashboard, cover the old boards, coolers, flooring and other materials.
Culture/sports,
school teaching materials, children's toys, sporting a variety of mattress, surfboard, swimming with life jackets, float and cushioning materials;kitchen sink mat, bath cap and slippers, hats
Insulations
Heating and cooling machines, tanks, reservoirs and insulation materials;central air conditioning, air conditioning with heat insulation, Sound proof,sound-absorbing,
Construction
Construction, civil engineering field, roof, wall insulation, thermal insulation, cushioning, anti-condensation, waterproof, leak-proof, wallpaper,anti-corrosion materials; various infrastructure construction materials; anti-frost, shock cushioning material; interior decoration, mattress materials,wall sound barriers
6.Certification
ISO9001,ROHS,SGS,UL ,REACH,etc.
