Closed Cell HVAC Duct Insulation Foam Polyethylene Sheet Roll Xpe / Ixpe

Closed Cell HVAC Duct Insulation Foam Polyethylene Sheet Roll Xpe / Ixpe
Closed Cell HVAC Duct Insulation Foam Polyethylene Sheet Roll Xpe / Ixpe Closed Cell HVAC Duct Insulation Foam Polyethylene Sheet Roll Xpe / Ixpe

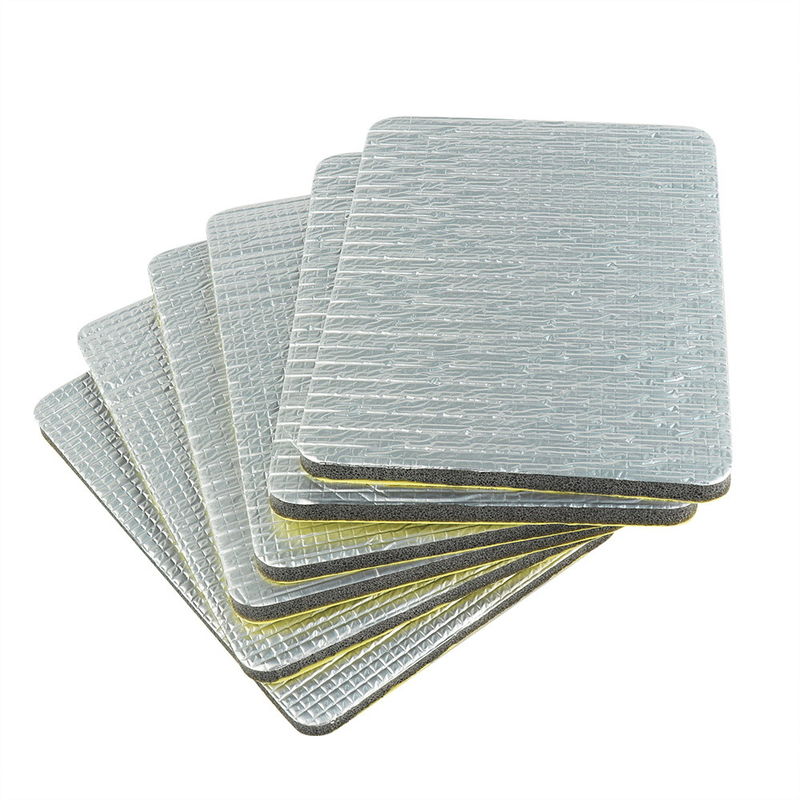

Large Image :  Closed Cell HVAC Duct Insulation Foam Polyethylene Sheet Roll Xpe / Ixpe

Product Details:
Place of Origin: China
Brand Name: CYG
Certification: RoHs, REACH, UL 94, ISO 14001
Model Number: CYG-2146
Payment & Shipping Terms:
Minimum Order Quantity: 3000 SQM
Price: USD 0.41~3.19 Kg/m3
Packaging Details: PE Bag
Delivery Time: 15-20 work days
Payment Terms: L/C, D/P, T/T, D/A, , Western Union, MoneyGram
Supply Ability: 500 tons per month

Closed Cell HVAC Duct Insulation Foam Polyethylene Sheet Roll Xpe / Ixpe

Description
Thickness: 3-30 Mm Material: LDPE
Width: 1-2m Or Customized Application: HVAC Thermal Insulation
Structure: 100% Closed Cell Flammability: B1 Grade
Density: 25-330KG/m3 Style: Pipe,sheet,roll Or Customized
Reflectivity: 96-97% Product Name: Foil Backed Polyethylene Foam Insulation
High Light:

hvac duct insulation foam

,

hvac foam insulation

HVAC Thermal Insulation Polyethylene Sheet Roll Xpe / Ixpe / Polyethylene Foam





CYG PE Foam is a leading supplier of HVAC products located in Shenzhen, China and serving the trading, contracting, HVAC, MEP, civil, interior works and building material supply of the country. Specializing in Thermal insulation, Acoustic insulation, Adhesives, Sealants, Vapor barriers, Flexible Ducts & Connectors, Fasteners, copper pipes, tools and all kinds of HVAC products. We provide solutions and closed cell cross-linked polyethylene foam (XPE or XLPE or IXPE or IXPP)materials to customers in different countries including China, USA, UK, UAE, Germany, Southeast Asia etc.





Our track records of quality, safety and reliability have made it a contractor of choice for major developers, government ministries, and private clients throughout the world.





CYG polyethylene foam materials are a range of high performance thermo-reflective insulation products designed for use in steel framed and concrete residential and commercial roofs, walls, floors, specifically designed for hot climates. CYG TEFA materials can reflect up to 97% of radiant heat away from its surface. The products provide an all-in-one radiant barrier, high performance insulant and vapor barrier solution.





Density 200±30 125±15 100±10 66.7±8 50±6 40±4 33.3±3
Hardness 60-70 50-60 45-50 35-45 30-35 2-30 18-25

Water absorption

(23°C 24h)g/cm³

≤0.02 ≤0.02 ≤0.03 ≤0.03 ≤0.04 ≤0.04 ≤0.05
Thermal conductivity ≤0.092 ≤0.082 ≤0.07 ≤0.062 ≤0.053 ≤0.047 ≤0.041
Tensile strength(mpa) L ≥1.35 ≥1.12 ≥0.88 ≥0.68 ≥0.39 ≥0.33 ≥0.25
  M ≥1.08 ≥0.89 ≥0.71 ≥0.56 ≥0.33 ≥0.25 ≥0.20
Elongation L ≥170 ≥150 ≥130 ≥120 ≥100 ≥90 ≥80
  M ≥190 ≥170 ≥150 ≥140 ≥110 ≥100 ≥90
Tearing strength L ≥5.90 ≥4.80 ≥3.60 ≥2.80 ≥1.80 ≥1.60 ≥1.35
  M ≥7.10 ≥5.40 ≥4.00 ≥3.30 ≥2.30 ≥2.00 ≥1.70

Features:



  • Saves Energy: retain the temperature of the air they are transporting, reducing energy wastage.
  • Prevents Condensation on Ducts: XPE insulation provides a solid cover around the air ducts.
  • Reduces Noise Transmitted Indoors: XPE can carry sound waves all around the house and carry sounds across rooms such as the noise of the furnace turning on in phases as well.
  • Hot-dipped galvanized steel sheets of lock-forming quality are used for the manufacturing of standard ducts.
  • Ducts are also available in both, stainless steel and Aluminum.
  • All straight ducts have beading all along at a distance of 300 mm between them for reinforce.



Air duct insulation:



XPE / IXPE  insulation pe foam is made by closed cell chemical cross-linked polyethylene foam, adhesive backing and faced with pure aluminum foil and it's flame retardant as well. Widely used in HVAC duct / pipe insulation.

CYG PE foam for ducts are manufactured at our state-of-the-art factory as per customer requirements. All the accessories for example fittings, attachments, components, and other goods are manufactured from the finest grade of material and cutting edge technology. CYG quality controllers check each and in details on well defined quality parameters. With competitive prices, if you need to be, the offered range of ducting is also facilitated with sound proofing and high degree insulation.





Type

Description



Specification

Thickness



12/13/15/19/25/30mm


Width



1000-1200mm
  Length 20-25meter in roll,1.2meter in sheet


Color



Grey and black



Structure

Aluminum pet+xlpe foam +adhesive layer



Foam Data

Density



28-35(kg/m3)


Shore Hardnes



18~25(°)
  Thermal Conductivity

≤0.045(w/m.k)



Fire Retardant (FR)

full fire resistance material in which its chemical compound stops the spread of fire just within 60s.



Package

Poly bag ,support customization package



Container Stuffing

3000-4000 square meter



Quantity As order and mixed spec is support






Advantages:



  • High foaming rate
  • Low density
  • Good elasticity
  • Good toughness
  • Thermal insulation
  • Energy saving
  • Noise reduction
  • Sound insulation
  • Anti-condensation
  • Corrosion and aging
  • Convenient



Specification:



Closed Cell HVAC Duct Insulation Foam Polyethylene Sheet Roll Xpe / Ixpe 0





Closed Cell HVAC Duct Insulation Foam Polyethylene Sheet Roll Xpe / Ixpe 1Closed Cell HVAC Duct Insulation Foam Polyethylene Sheet Roll Xpe / Ixpe 2


Closed Cell HVAC Duct Insulation Foam Polyethylene Sheet Roll Xpe / Ixpe 3
