Product Details:
|
| Material: | LDPE | Width: | 1m-2m, Customized |
|---|---|---|---|
| Size: | Custom Size | Thickness: | 1-100mm |
| Density: | 25-330kg/m3 | Usage: | Car,automotive |
| Tear Strength: | 150(min)GMF | Product Name: | Expandable Polyethylene EPE Foam Materials |
| Shape: | Sheet Or Roll | ||
| Highlight: | xlpe foam sheet,closed cell cross linked polyethylene foam |
||

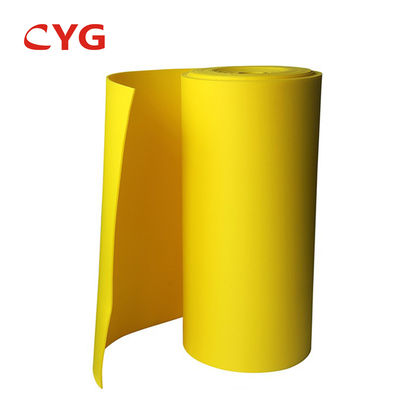

Car Interior Accessories Noise Foam Sound Proof Closed Cell Polyethylene Foam
|
||||
| Property | Standard | Unit | Value | |
| Density | - | Kg/m³ | 83.00 | |
| Tensile Strength | Transverse | ISO-1798 | MPa | 0.65~0.67 |
| Longitudinal | 0.98~1.00 | |||
| Elongation | Transverse | ISO-1798 | % | 171.11~198.50 |
| Longitudinal | 164.30~192.60 | |||
| Tearing Strength | Transverse |
ISO-8067
|
Kn/m | 3.55~3.82 |
| Longitudinal | 4.80~5.00 | |||
| Operating Temperature Range | Internal | °C | (-40,+80) | |
| Water Absorption % Volume (Maximum) | Internal | % | 0.20 | |
| Thermal Conductivity | JIS A1412-2 | W/mK | 0.095 | |
| Shore - C | ASTM D2240 | °C | 55 | |
| Flammability | FMVSS302 | mm/min | - | |
Qur services
Factory direct selling with competitve price, sooner leadtime,better customized services.
Samples in stock can be arranged in one working day.
Material: XPE, IXPE Foam
Density: 10B (100 kg/m³), 15B (66 kg/m³)
Thickness: 5mm, 6mm, 7mm,customized
Processing method: Heat pressing and seaming
Advantage: It's used in the middle layer of car floor. The most common product is combination of PVC materials. Easy to process and laminate with other materials to enhance waterproof and insulating properties.
Density: 20B (50 kg/m³), 25B (40 kg/m³), 30B (33 kg/m³)
Thickness: 5mm
Processing method: Heat pressing
Advantage: Excellent insulation materials and building-up properties.
3. Thermal insulation and soundproofing material for car
Material: XPE
Density: 30B (33 kg/m³)
Thickness: 3mm, 4mm, 5mm,
Processing method: Adhesive (Included)
Advantage: Adhesive foam for easy decroration, have good soundproof and thermal insulation performance. Fire retardant is available,waterproof.
Material: IXPE, IXPP
Density: 15B(66 kg/m³)
Thickness: 4mm, 5mm,customized
Processing method: Heat pressing & die cutting
Advantage: Processing with flexible IXPE or IXPP foam material to prevent vibration and reduce the heat.
Material: IXPE, XPE Foam
Density: 30B (33 kg/m³), 35B(28 kg/m³)
Thickness: 3mm, 4mm, 5mm, 6mm
Processing method: Heat pressing
Advantage: Extremely easy to cut into the size you want with shockproof protection and noise reduction properties.
Material: XPE, IXPE Foam
Density: 8B (125 kg/m³), 10B (100 kg/m³), 15B (66 kg/m³), 20B (50 kg/m³)
Thickness: 2mm, 3mm, 4mm
Application: Door waterproof strip, water-repellent film
Processing method: Thermal vacuum forming
Advantage: The closed cell foam structure provides noise reduction and excellent waterproof property.
