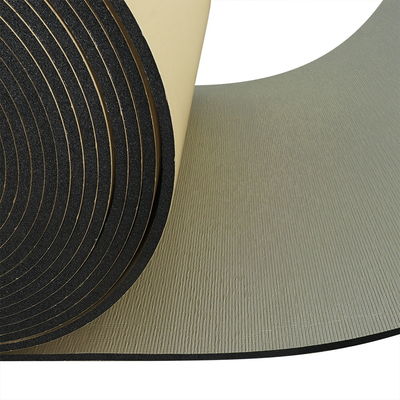

Polyethylene Blocks Closed Cell Thermal Insulation Materials Fire Expanding

Polyethylene Blocks Closed Cell Thermal Insulation Materials Fire Expanding
Polyethylene Blocks Closed Cell Thermal Insulation Materials Fire Expanding Polyethylene Blocks Closed Cell Thermal Insulation Materials Fire Expanding

Large Image :  Polyethylene Blocks Closed Cell Thermal Insulation Materials Fire Expanding

Product Details:
Place of Origin: China
Brand Name: CYG
Certification: RoHs, RE,REACH,UL.ISO14001
Model Number: CYG-5241
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE Bag
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 500 tons per month

Polyethylene Blocks Closed Cell Thermal Insulation Materials Fire Expanding

Description
Product Name: Polyethylene Blocks Closed Cell Fire Expanding Air Conditioner Insulation Foam Density: 28-300 Kg/m3
Thickness: 0.1-100mm Material: LDPE
Application: For Hot And Chilled Water Supply Width: 1m/1.2m/1.4m/1.5m
Thermal Conductivity: 0.03~0.036W/M*K Color: As Per Customer Request
High Light:

thermal insulation materials

,

fireproof xpe foam



Polyethylene Blocks Closed Cell Fire Expanding Air Conditioner Insulation Foam




Tear-resistant XPE shock absorption foam
This product is blended polyethylene and other special packing, add chemical crosslinking agent and foaming agent and polymer foam materials. Which makes the foam to be soft and high elasticity specification of foam, which can be used as Tear-resistant and shock absorption foam material, and wildly used in car, medical applications, heart forming, and high end protective packaging


Feature


· Light weight, good elasticity
· Incumbustible and waterproof
· Flame retardant
· Water absorption, Sound absorption
· Heat isolation
· Elastic and flexibility
· Anti-skidding, shock absorption and cold pressure.



Specifications



Density 200 ± 30 125 ± 15 100 ± 10 66.7 ± 8 50 ± 6 40 ± 4 33.3 ± 3
Hardness 60-70 50-60 45-50 35-45 30-35 2-30 18-25
Water absorption
(23 ° C 24h)g/ cm ³
≤ 0.02 ≤ 0.02 ≤ 0.03 ≤ 0.03 ≤ 0.04 ≤ 0.04 ≤ 0.05
Thermal conductivity ≤ 0.092 ≤ 0.082 ≤ 0.07 ≤ 0.062 ≤ 0.053 ≤ 0.047 ≤ 0.041
Tensile strength(mpa) L ≥ 1.35 ≥ 1.12 ≥ 0.88 ≥ 0.68 ≥ 0.39 ≥ 0.33 ≥ 0.25
  M ≥ 1.08 ≥ 0.89 ≥ 0.71 ≥ 0.56 ≥ 0.33 ≥ 0.25 ≥ 0.20
Tesibility L ≥ 260 ≥ 230 ≥ 210 ≥ 190 ≥ 170 ≥ 160 ≥ 140
  M ≥ 220 ≥ 200 ≥ 185 ≥ 170 ≥ 150 ≥ 135 ≥ 130
Tearing strength L ≥ 5.90 ≥ 4.80 ≥ 3.60 ≥ 2.80 ≥ 1.80 ≥ 1.60 ≥ 1.35
  M ≥ 7.10 ≥ 5.40 ≥ 4.00 ≥ 3.30 ≥ 2.30 ≥ 2.00 ≥ 1.70





Property



  • Ducts are also available in both, stainless steel and Aluminum.
  • Prevents Condensation on Ducts: XPE insulation provides a solid cover around the air ducts.
  • Saves Energy: retain the temperature of the air they are transporting, reducing energy wastage.
  • Hot-dipped galvanized steel sheets of lock-forming quality are used for the manufacturing of standard ducts.
  • All straight ducts have beading all along at a distance of 300 mm between them for reinforce.
  • Reduces Noise Transmitted Indoors: XPE can carry sound waves all around the house and carry sounds across rooms such as the noise of the furnace turning on in phases as well.


Advantages


1. Heat Insulation:
Single-foaming structure can reduce the loss of heat between air convections, suitable for making heat preservation pipes and boards. Good anti-dew capability, suitable for humid environments like refrigerators, air-conditioners and ice houses, etc.
2. Cushion Capability:
Semi-hard quality foams have good rebound capabilities after strong impact, suitable for the packing of instruments, semi-conductors and electronics, etc.
3. Sound Absorption:
Good sound and noise absorption capability, suitable for sound absorption and insulation parts of automobiles, electro-motors and other equipment and environments with loud noises.
4. Shaping Capability:
Good heat endurance and ductility capability with even density, suitable for making deep interior parts like shaping in vacuum and hot environments, like the air conditioning vaporizing tank of automobiles, hot-shaped peak canopy of vehicles and shoes, etc.
5. Good chemical, oil, acid and alkali durability capabilities.
It is safe and odorless, easy for machining and casting, and can be mixed with many other materials. It has a wide developing area as a new environmentally-safe material.

Our services


Factory direct selling with lower price, sooner leadtime, better customized services.
Samples in stock can be arranged in one working day.

Company info



CYG TEFA Co., Ltd has 17 years of production experience. We're the biggest and the most professional irradiation cross-linked polyethylene conductive foam manufacturer in China and has the most complete cross-linked polyethylene foam products. Our main products are Cross-linked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat, camping mat, sleeping mat, yoga mat; etc. Our clients are iPhone, Samsung, Gree, Haier, TCL, Adidas, Nike, Flextronics, General Motors, BYD, PPL, etc. Now, we have 2 factories and 17 production lines...



  • Management control system: Kingdee / OA / Oracle



  • R & D team

11 employee
Investment rate: 4% to 10%
Responsible for : Improving available product / Technology improving / New product development / New devices



  • On-going project

IXPP project (three years: Proposal stage - Develop - Sampling - Approved product- Small quantity supply for testing
