Physical Cross Linked Thickness 100mm Insulation Pe Sheet

Physical Cross Linked Thickness 100mm Insulation Pe Sheet
Physical Cross Linked Thickness 100mm Insulation Pe Sheet Physical Cross Linked Thickness 100mm Insulation Pe Sheet Physical Cross Linked Thickness 100mm Insulation Pe Sheet Physical Cross Linked Thickness 100mm Insulation Pe Sheet Physical Cross Linked Thickness 100mm Insulation Pe Sheet Physical Cross Linked Thickness 100mm Insulation Pe Sheet

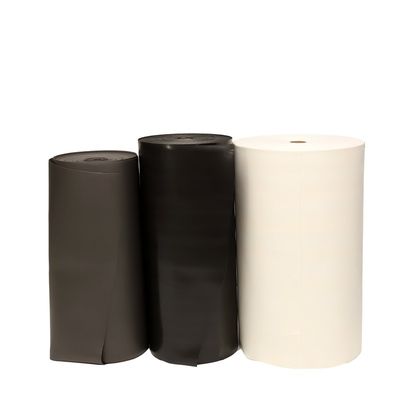

Large Image :  Physical Cross Linked Thickness 100mm Insulation Pe Sheet

Product Details:
Place of Origin: China
Brand Name: CTF
Certification: ISO9001, ISO14001, IATF16949,FMVSS 302,UL94 HF-1,RoHS,CE,etc.
Model Number: NON
Payment & Shipping Terms:
Minimum Order Quantity: 3000 sqm or Negotiable
Price: Negociated
Packaging Details: PE Bag
Delivery Time: 15-20 work days
Payment Terms: L/C, D/P, T/T, D/A, , Western Union, MoneyGram, MoneyGram
Supply Ability: 5000 tons per year

Physical Cross Linked Thickness 100mm Insulation Pe Sheet

Description
Density: 25-333kg/m3 Material: LDPE
Product Name: Xpe Closed Cell Foam Expanded Polyethylene Foam Products Suppliers Width: 1m-1.5m, Customized
Thickness: 1-100mm Shape: Sheet Or Roll
Type: Cross Link Closed Cell Certificate: REACH , ROHS
Advantage: Eco-friendly
High Light:

Xpe Closed Cell Foam

,

XPE Foam Board

Chemically Cross Linked Insulation Pe Polyethylene Xpe Foam Sheet Low Moq



Polyethylene foam is closed-cell, meaning it consists of cells so tightly packed together that it gives the appearance of one uniform structure.
The reality is that the individual cells within polyethylene foam do not physically connect to one another.
This cellular formation is similar to fish caught in a fisherman's net.
From a critical distance, the net appears to be one massive object.
However, upon closer examination, it becomes apparent that there is numerous individual fish packed tightly together that the result is the aforementioned appearance of singularity.





Specifications







  • Foam Type: XPE FOAM / XLPE FOAM
Property Standard Unit Value
Density - Kg/m³ 28.00
Tensile Strength Transverse ISO-1798 MPa 0.21~0.22
  Longitudinal     0.22~0.24
Elongation Transverse ISO-1798 % 95.30~103.50
  Longitudinal     84.60~91.30
Tearing Strength Transverse

ISO-8067



Kn/m 1.58~1.62
  Longitudinal     1.77~1.82
Compression 25% ISO-3386-1 kPa 39.60
Compression 40% ISO-3386-1 kPa 66.80
Compression 50% ISO-3386-1 kPa 94.80
Compression Set 25% 0.5H ISO-1856 % 15.20
Compression Set 25% 24H ISO-1856 % 5.40
Operating Temperature Range Internal °C (-40,+80)
Water Absorption % Volume (Maximum) Internal % 0.50
Thermal Conductivity JIS A1412-2 W/mK 0.040
Shore - C ASTM D2240 °C 22
Flammability FMVSS302 mm/min -







Raw material: LDPE, PE foam+Alu foil
Density: 25~333kg/m3
Length: customized
Wide: 70~1800 mm
Thickness:

Ixpe 0.1~0.5mm 0.5~3mm, 3~10mm

xpe 2~3mm 3~12mm
Ixpe 0.1~0.5mm 0.5~3mm, 3~10mm
Color: black,white and gray,other colors can be customized
Shore hardness: 10~80 degree
Reflective:96%~97%
Structure: Closed cell
Flammability:B1 grade
Refractoriness:100-150 degree
Thermal Conductivity:0.032~0.095 w/m.k
Water Absorption:(23degree,24h) 0.2~0.6%
Tearing Strength: 0.2~1.8 KN/m
Elongation at break :100%~240%
Tensile Strength: 0.2~1.6 Mpa
Compressed distortion: 2%~10%
Size change rate: -4%`-8%
Thermal conductivity: 0.040 ~0.095 w/m.k
Certificate: ISO9001,REACH,ROSH,IATF16949,CE
Packaging: common PE bag





Features




1. Lightweight, good elasticity
2. Weatherproof and waterproof
3. Flame retardant
4. Sound absorption
5. Heat insulation

6. Elastic and flexibility

7. Thermal insulation
8. Shock absorption






Company info



CYG TEFA is the earliest PE foam manufacturing with scale production in China since 2002. Mainly produce XPE FOAM, IXPE FOAM, IXPP FOAM, and ESD PRODUCT(Foam type: PE/EVA/PU/EPE/PP Plastic).Annual production capacity is about 6000 tons.2 factories one in Shenzhen and another in Huzhou, with a total of 17 production lines.CTF Management control system: Kingdee / OA / Oracle.CYG has a strong technical background and a professional sales team. More than 30 R&D staff. Through the great variety of our products, we provide people with a warm and quiet home and working environment.

  • Management control system: Kingdee / OA / Oracle

          On-going project



IXPP project (three years: Proposal stage - Develop - Sampling - Approved product- Small quantity supply for testing

  • R & D team :20 employee

Investment rate: 4% to 10%
Responsible for: Improving available product / Technology improving / New product development / New devices




Qur services

Factory direct selling with competitive price, sooner lead time, better-customized services.
Samples in stock can be arranged in one working day.
