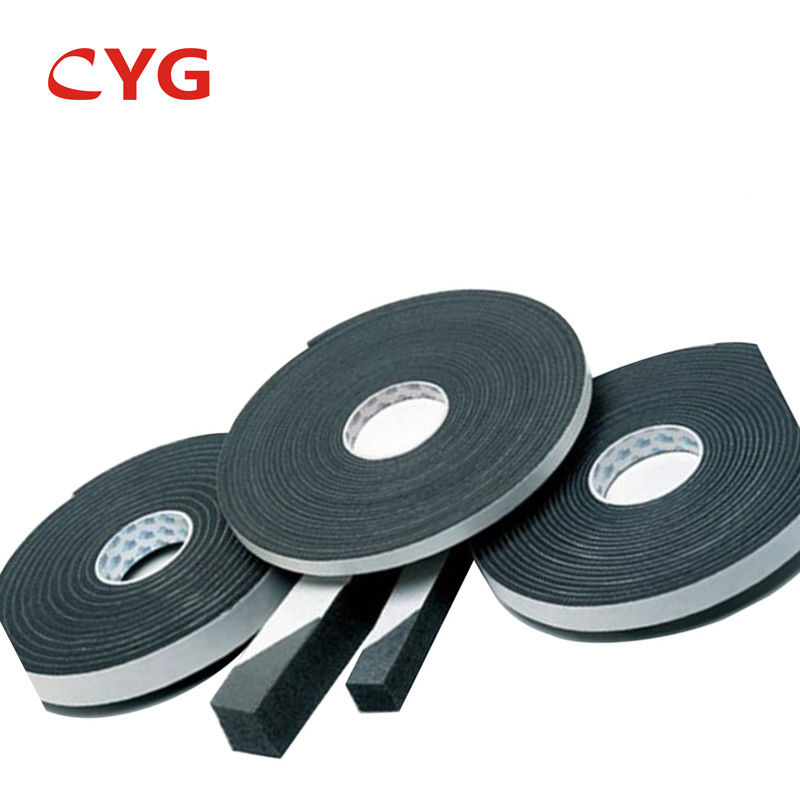

LDPE 25mm Thermal Insulation Roll Expanded Block Ixpe Foam Rolls

LDPE 25mm Thermal Insulation Roll Expanded Block Ixpe Foam Rolls
LDPE 25mm Thermal Insulation Roll Expanded Block Ixpe Foam Rolls LDPE 25mm Thermal Insulation Roll Expanded Block Ixpe Foam Rolls LDPE 25mm Thermal Insulation Roll Expanded Block Ixpe Foam Rolls LDPE 25mm Thermal Insulation Roll Expanded Block Ixpe Foam Rolls LDPE 25mm Thermal Insulation Roll Expanded Block Ixpe Foam Rolls

Large Image :  LDPE 25mm Thermal Insulation Roll Expanded Block Ixpe Foam Rolls

Product Details:
Place of Origin: China
Brand Name: CTF
Certification: SGS
Model Number: PE Foam
Payment & Shipping Terms:
Minimum Order Quantity: 3000
Packaging Details: PE Bags or Customized

LDPE 25mm Thermal Insulation Roll Expanded Block Ixpe Foam Rolls

Description
Material: LDPE Colour: Customization
Shore Hardness: 8~18 Degree Tearing Strength: >1.3
Thermal Conductivity: <0.040 Elongation: >80%
Compressed Distrotions: <11 Specification: 25mm
High Light:

LDPE Thermal Insulation Roll

,

25mm Thermal Insulation Roll

,

Expanded Block Ixpe Foam Rolls

Foam Type: IXPE FOAM / IXLPE FOAM
Property
Standard
Unit
Value
Density
-
Kg/m³
66.70
Tensile Strength
Transverse
ISO-1798
MPa
0.54~0.55

Longitudinal


0.64~0.65
Elongation
Transverse
ISO-1798
%
203.70~232.70

Longitudinal


253.90~283.40
Tearing Strength
Transverse
ISO-8067
Kn/m
3.47~3.68

Longitudinal


4.28~4.34
Operating Temperature Range
Internal
°C
(-40,+80)
Water Absorption % Volume (Maximum)
Internal
%
0.30
Thermal Conductivity
JIS A1412-2
W/mK
0.065
Shore - C
ASTM D2240
°C
40
Flammability
FMVSS302
mm/min
-



Performance


Heat Insulation

Single foaming structure can reduce the loss of heat between air convection, suitable for making heat preservation pipes and boards.


Waterproof

Closed-cell foam, non-water-absorbing, moisture-proof.

Shock absorption

Soft texture and good resilience enable foam to have a shock absorption effect and play a protective role.Semi-hard quality foams have good rebound capabilities after strong impact.

Sound absorption

Good sound and noise absorption capability.

Fire retardancy
This product has fire-blocking and smoke-reducing property, when burned, its density is very low and doesn't melt, without any small fire ball left and with the merit of self-extinguishing.

Low conductivity factor

Conductivity of this material is 0.032 w / mk at an average° C. As this product has high heat-releasing ratio, it can get the same heat-preservation effect at less half thickness of other insulating product under the same condition, saving not only space but also cost.
Application

Foam tape

IXPE Foam for Photovoltaic tape is a classical cases in our projects. We give a professional solution as followings. IXPE foam with density of 67kg/m3, 1mm, black or white, after gluing, and coated with PE flm on surface, it will be made into the tape with of good tensile property.
