Product Details:
|
| Thickness: | 0.1mm To 50mm | Feature: | Flexible |
|---|---|---|---|
| Material: | IXPE Foam | Port: | Shenzhen |
| Density: | 25kg/m3 To 333kg/m3 | Type: | Sheets/rolls |
| Size: | Custom Size,on Demand |

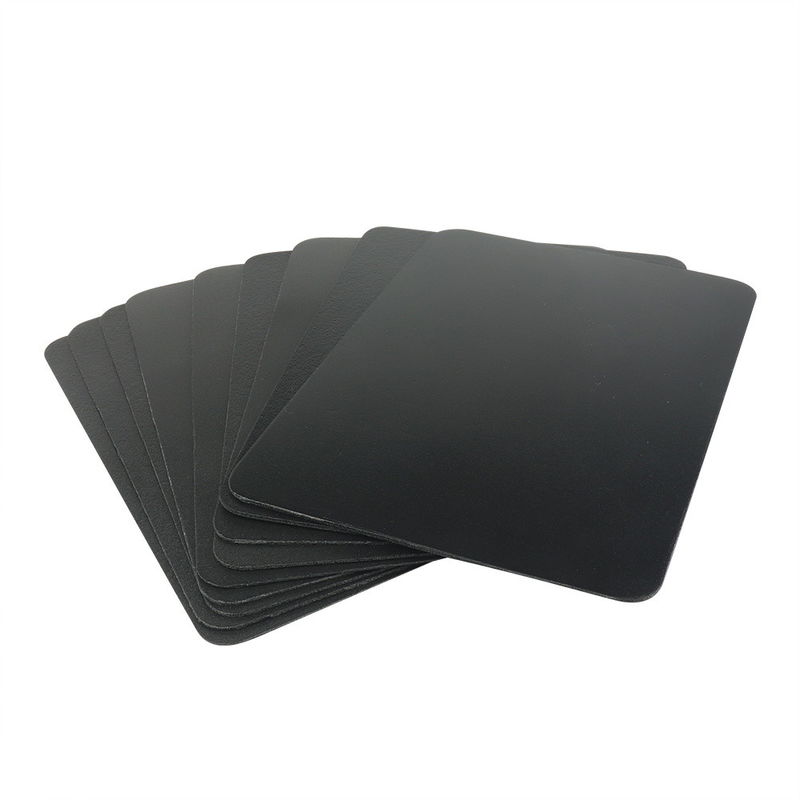

IXPE -Cross-linked Polyethylene foam, is a type of foam material created by chemically or physically (using methods like peroxide crosslinking or radiation crosslinking) connecting linear High-Density Polyethylene (HDPE) molecules. This crosslinking process imparts several advantageous properties to IXPE:
Excellent Physical Properties: It demonstrates high wear resistance, water resistance, and chemical resistance, as well as good electrical insulation.
Robust Mechanical Performance: It has noteworthy tensile strength, compressive strength, and resilience.
Closed-Cell Structure: Its closed-cell structure provides effective thermal insulation, sound insulation, waterproofing, and moisture resistance.
Lightweight: IXPE is relatively lightweight compared to other foam materials.
Environmentally Friendly: It is recyclable and meets eco-friendly requirements.
Good Processability: It is easy to cut, mold, and adhere, suitable for various manufacturing processes.
IXPE finds extensive applications in areas such as thermal insulation in construction, automotive interiors, electronic packaging, sports equipment, medical devices, children's toys, floor underlay, and waterproofing materials.
Application of IXPE Insulation Material:
– Medical area
- ECG Electrode
- Could be with or without adhesive
Product Detail
|
Normal thickness |
0.5mm to 1.6mm or Customized |
|
Normal width |
1000mm,1200mm,1300mm,1500mm or Customized |
|
Normal length |
200m, 300m, 450m, 500m or Customized |
3.Product Testing
For example: 96kg/m3 1mm
| Property | Standard | Unit | Value | |
| Density | - | Kg/m³ | 96.00 | |
| Tensile Strength | Transverse | ISO-1798 | MPa | 0.70~0.71 |
| Longitudinal | 0.89~0.91 | |||
| Elongation | Transverse | ISO-1798 | % | 188.20~192.10 |
| Longitudinal | 199.30~202.50 | |||
| Tearing Strength | Transverse |
ISO-8067 |
Kn/m | 3.76~4.28 |
| Longitudinal | 4.76~4.80 | |||
| Compression 25% | ISO-3386-1 | kPa | 102.80 | |
| Compression 40% | ISO-3386-1 | kPa | 152.00 | |
| Compression 50% | ISO-3386-1 | kPa | 203.20 | |
| Compression Set 25% 0.5H | ISO-1856 | % | 13.60 | |
| Compression Set 25% 24H | ISO-1856 | % | 5.20 | |
| Operating Temperature Range | Internal | °C | (-40,+80) | |
| Water Absorption % Volume (Maximum) | Internal | % | 0.30 | |
| Thermal Conductivity | JIS A1412-2 | W/mK | 0.073 | |
| Shore - C | ASTM D2240 | °C | 46 | |
4.Product Application
ECG Electrode, Flooring underlayment, Bottle cap, Foam tape, Sealing tape, etc.
