Product Details:
|
| Thickness: | 8mm | Density: | 28-32kg/m3 |
|---|---|---|---|
| Color: | Grey Green | Material: | LDPE Foam+ Aluminium Foil |
| High Light: | reflective foam board,reflective insulation board |
||

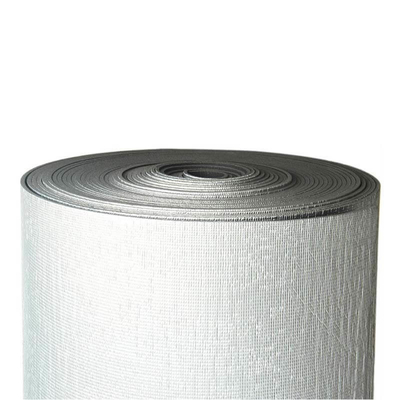

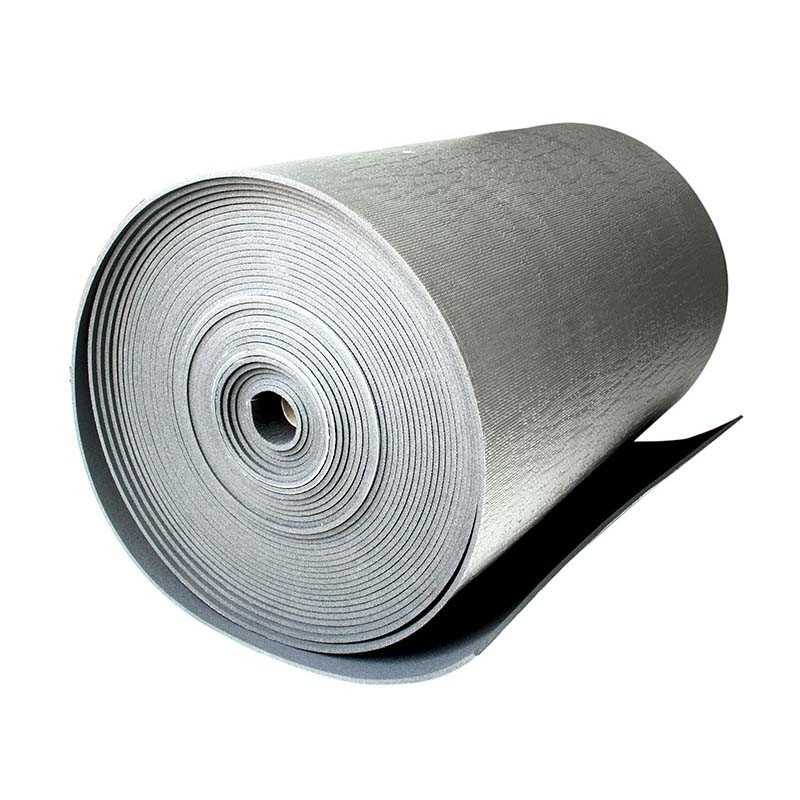

Building Materials Reflective Close Cell PE Foam Insulation
XPE Aluminum Foil Insulation Technical parameters:
| Material Structure :AL/XPE foam/AL | ||
| Roll Width: 1.2m (Length can be customized | ||
| Properties | Test Data | Unit |
| Thickness | 3mm/4mm/5mm/7mm | MM |
| Weight | G/sq.m | |
| Emissivity | 0.03--.0.04 | Coef |
| Thermal Conductivity | 0.035 | W/M° |
| Apparent Density | 123 | Kg/m3 |
| Reflectivity | 96--97 | % |
| Water Vapour Transmission | 0.012 | G/ M2 KPA |
| Corrosion | Doesn't Generate | |
| Tensile Strnegth (MD) | 0.77 | Mpa |
| Tensile Strength (TD) | 1.43 | Mpa |
Feature:
1. Light weight, good elasticity
2. Weatherproof and waterproof
3. Flame retardant
4. Sound absorption
5. Heat insulation
6. Elastic and flexibility
7. Shock absorption
8. High reflection
9. Closed cell foam
Advantages
1. Heat Insulation:
Singlefoaming structure can reduce the loss of heat between air convections, suitable for making heat preservation pipes and boards. Good anti-dew capability, suitable for humid environments like refrigerators, air-conditioners and ice houses, etc.
2. Cushion Capability: Semi-hard quality foams have good rebound capabilities after strong impact, suitable for the packing of instruments, semi-conductors and electronics, etc.
3. Sound Absorption:
Good sound and noise absorption capability, suitable for sound absorption and insulation parts of automobiles, electro-motors and other equipment and environments with loud noises.
4. Shaping Capability:
Good heat endurance and ductility capability with even density, suitable for making deep interior parts like shaping in vacuum and hot environments, like the air conditioning vaporizing tank of automobiles, hot-shaped peak canopy of vehicles and shoes, etc.
5. Good chemical, oil, acid and alkali durability capabilities.
It is safe and odorless, easy for machining and casting, and can be mixed with many other materials. It has a wide developing area as a new environmentally-safe material.
Our services
Factory direct selling with competitve price, sooner leadtime, better customized services.
Samples in stock can be arranged in one working day.
Company info
CYG TEFA Co., Ltd. is a subsidiary of Shenzhen Changyuan Croup Co., Ltd (stoke code, 600525).
CYG TEFA Co., Ltd, a national high-tech company, established in December of 2002.; We're the biggest and the most professional irradiation crosslinked polyethylene conductive foam manufacturer in China and has the most complete crosslinked polyethylene foam products. Now we have 3 production bases in Shenzhen, Hangzhou, Chongqing, 8 production lines of all kinds, with annual production capacity of 5000 tons; Our main products are Crosslinked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat, camping mat, sleeping mat, yoga mat; etc.
Application
Homes
Metal & Steel buildings
Roof Underlayments
Attics
Ceilings
Floors
Basement Walls
Polst frame buildings
Garage doors
Pole barns
Poultry barns
