Polyethylene Foam Sound Insulation Foam Thermal Insulation Material 0.5-100mm Thickness

Polyethylene Foam Sound Insulation Foam Thermal Insulation Material 0.5-100mm Thickness
Polyethylene Foam Sound Insulation Foam Thermal Insulation Material 0.5-100mm Thickness Polyethylene Foam Sound Insulation Foam Thermal Insulation Material 0.5-100mm Thickness

Large Image :  Polyethylene Foam Sound Insulation Foam Thermal Insulation Material 0.5-100mm Thickness

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: CYG
Model Number: CYG
Payment & Shipping Terms:
Minimum Order Quantity: 2000 Square Meter/Square
Price: $0.10 - $10.00 / Square Meters
Packaging Details: conventional packaging or as requests
Supply Ability: 500 tons per month

Polyethylene Foam Sound Insulation Foam Thermal Insulation Material 0.5-100mm Thickness

Description
Material: PE Thickness: 0.5-100 Mm
Size: Customized Density: 25-330KG/m3
Expansion Ratio: 3,5,8,10,15,20,25,30,35,40 Times,or As Requests Thermal Conductivity: ≤0.05w/m.k
Thickness: 1-100 Mm Or As Requests Color: All Kinds
Max Width: 2500mm, Or Customized Hardness: 10-80 Shores
Style: Sheet,roll Or Customized Packaging: PE Bags,or As Requests
Delivery Time: 15-20 Working Days Port: Shenzhen Port
High Light:

foam insulation sheets

,

building insulation foam



Conductive /anti-static foam outstanding performance for delicate and fragile, electronic, medical, heavy weight, high value items provides total functionality.
Ideal packaging and storage foam material for electrostatic discharge sensitive devices,assemblies and equipment.
Static dissipative&Conductive foam outstanding performance for delicate and fragile, electronic, medical, heavyweight, high-value items provides total functionality.
Ideal packaging and storage foam material for electrostatic discharge sensitive devices, assemblies and equipment.
The Conductive IXPE foam is closed cell soft foam which takes polyethylene (PE) as a raw material, through adding anti-static materials and then crosslinked by irradiation and foaming. After foaming, the conductive filler in the interior of sheet formed a conductive path/network, so as to achieve the purpose of static leakage.The dimension can be designed by customers' requirements, for opto electronic devices, microelectronic devices packaging, and its anti-static property will not be changed for post-processing.

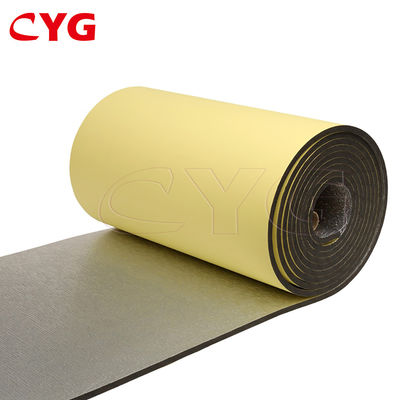

XPE foam one side with adhesive and one side with aluminum foil
Features: Water and shock-proof, fire resistance, thermal insulation.
White carpet underlay
adhesive strip and overlap film for linking multiple roll
XPE double sides laminated with aluminum foil, an advanced thermal performance reflecting up to 95% radiant heat, allowing for cooler internal conditions in hot and humid climates, also it has a great property of flame retardant and tensile strength.





– Insulation for refrigerator and air-conditioner
– Various kinds of insulation tubes
– Thermal insulation for floor
– Anti-dew materials for sink
– Cushioning materials
– Various kinds of gaskets
– Thermal insulation for energy saving equipment
– Duct cover, wall partition strip etc. Fire Rating




Application



Air conditioner use foam products(  foam with aluminum foil on one side and adhesive on the other side)

Fire retardant air conditioning heat insulation foam


CYG XPE FOAM rubber insulating products with good flexibility make them suitable for bent and irregular pipes in construction, saving both labor force and cost.It has very lower thermal conductivity and excellent waterproof due to the closed cell structure .and Use on hot or cold pipes,Easy to install in cold water plumbing and air-conditioning lines.


Vibration Resistance


CYG XPE FOAM heat-proof and heat-preservation plastic-rubber with high elasticity ,can reduce the vibration and resonance of the hot /cold water pipes utmost.





material structure type
Aluminum foil/XPE foam/Aluminum foil insulation
type
colorful Coating/aluminum foil/colored XPE foam/woven cloth/aluminum foil insulation
XPE foam density :
30 KG/m³,
thickness
4 mm,5 mm,6.5 mm,7 mm

Coating
the color is customized,coating can prevent the people's eye sight when installing the products and also can make the products more durable for it can prevent the aluminum foil from be oxygenated easily.
aluminum foil
we supply 2 layers aluminum foil and 3 layers aluminum foil.3 layers is much stronger than 2 layers.

regular roll size
1.2M width X40M length,the max width is 1.5M,the length is customized





Good fire –blocking




This product has fire-blocking and smoke-reducing property , when burned , its density is very low and doesn't melt, without any small fire ball left and with the merit of self-extinguishing.
According to the standard of GBB8624-1997 Method for grading flammability of construction material, this is the flame resistant product of grade B1 enabling to secure the satiety.




Low conductivity factor




Conductivity of this material is 0.034w/mk at an average°C.As this product has high heat-releasing ratio, it can get the same heat-preservation effect at less half thickness of other insulating product under the same. condition, saving not only space but also cost.




Fire Rating
Class 1/ Class A
Temp Range
-50F to 180F
Emissivity
0.057
Reflectivity
0.943
Water Vapor Permeability
0.02 Perms
Resistance to Fungi
Does Not Promote
Product Introduction


IXPE foam



IXPE foam is produced by compounding PE with some special padding and foaming material,then cross linking by irradiation and foaming which is considered as polymer material, expect the property of XPE, the IXPE has better property than the XPE foam: Its surface is much more smooth, the obturator foramen is much more well-proportioned and detailed, and its physical property is much better, too. Because of its environmental property, it is extensively used in food packing daily leisure use and medical instruments.





About us



CYG TEFA Co., Ltd has 17 years of production experience. We're the biggest and the most professional irradiation cross-linked polyethylene conductive foam manufacturer in China and has the most complete cross-linked polyethylene foam products.

Our main products are Cross-linked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat, camping mat, sleeping mat, yoga mat; etc.



CYG TEFA offers the best solution for polyethylene foam production based on long experience in the developing ,manufacturing PE foam.All the service are focused on quality of products and satisfied our customer.
We are committed to developing,manufacturing and selling cross-linked PE foam.

Over the years,we have developed 2 production bases in Shenzhen,Hangzhou,and 17 production lines of all kinds,with annual production capacity of 6000 tons

All our products can be used for thermal insulation,waterproof,shockproof,etc. and also our products get the UL, ISO, SGS, Rohs, Reach , CE approval.

Our clients are iPhone, Samsung, Gree, Haier, TCL, Adidas, Nike, Flextronics, General Motors, BYD, PPL, etc.




Quality control

CYG has perfect quality control equipment and strict quality test procedure to ensure the quality and safety.





Equipment & technology



Introduction of Korean professional equipment and technology to meet customers' quality needs.



Service



Factory direct selling with lower price, sooner leadtime, better customized service.
Samples in stock can be arranged in one working day.









FQA



What is closed-cell?

Polyethylene foam is closed-cell, meaning it consists of cells so tightly packed together that it gives the appearance of one uniform structure.

The reality is that the individual cells within polyethylene foam do not physically connect to one another.

This cellular formation is similar to fish caught in a fisherman's net.

How can I know the suitable foam density I need?

Our PE foam density is between 25 kg/m3 and 240 kg/m3
We can provide the best solution for you according to the application, Density, hardness, thickness.And The free sample is available for your confirmation and text

How do you take care when your clients received defective foam products?

replacement. If there are some defective foam products, we usually credit to our customer or replace in next shipment.

How do you check all PE foam on the production line?

We have spot inspection and finished product inspection of our foam materials.We check the PE foam materials when they go into next step production procedure.
