Product Details:
|
| Type: | Other Heat Insulation Materials | Thickness: | 10mm |
|---|---|---|---|
| Density: | 60-200kg/m3 | Certificate: | SGS/ISO900 |
| Width: | 1.3m | Structure: | PE+AL+PE Foam |
| Length: | Customer-made | Application: | Construction |
| Company History: | 15years Experience | Port: | Shenzhen |
| High Light: | foam insulation sheets,building insulation foam |
||
CYG FOAM is a flexible thermal insulation material made from closed cell, crosslinked polyethylene foam. The special crosslinking utilized in the production of the material, as well as, its closed cell structure, results in insulating properties that are superior to convictional fiberglass, rubber based and non crosslinked products. It is also for reducing thermal losses in heating and plumbing systems. The combination of its technical properties-a low therma conductivity and a high resistance to wter wapor transmission-and its competitive price makes it a cost-effective energy-saving solution.The CYGFOAM range covers the majority of pipe sizes used in these types of installation.
A very low thermal conductivity value(K), and negligible water absorption and vapour transmission rates reflect in its superior energy saving performance, in s varier y of environments.

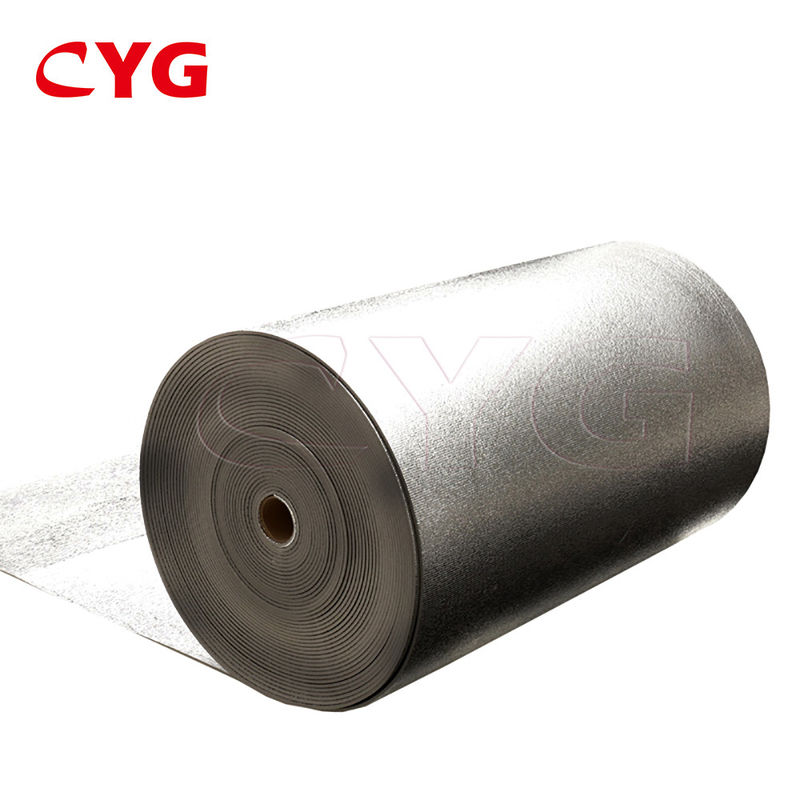

Product structure: Foam with aluminum foil on two sides.
Foam Dimension-the thickness ,width and length ,they all can be customize.
For heat insulation, foam density around 28kg/m3.
Normal thickness of one foaming1-10mm,and can be reached to 100mm after lamination.
Normal width in1000mm,1200mm,1300mm,1350mm.
Normal length in30m, 40m 50m,80m
Specifications
|
Thickness (mm) |
Width length (M) |
Type | ||||
| Foam | SA | With AL | With SA and AL | AL on both sides | ||
| 13 | 1×20M | CYGF013-1-20 | CYGS013-1-20 | CYGA013-1-20 | CYGSA013-1-20 | CYGAA013-1-20 |
| 19 | 1*15M | CYGF019-1-15 | CYGS019-1-15 | CYGA019-1-15 | CYGSA019-1-15 | CYGAA019-1-15 |
| 25 | 1*10M | CYGF025-1-10 | CYGS025-1-10 | CYGA025-1-10 | CYGSA025-1-10 | CYGAA025-1-10 |
| 35 | 1*2 | CYGF035-1-02 | CYGS035-1-02 | CYGA035-1-02 | CYGSA035-1-02 | CYGAA035-1-02 |
| 50 | 1*2 | CYGF050-1-02 | CYGS050-1-02 | CYGA050-1-02 | CYGSA050-1-02 | CYGAA050-1-02 |
|
Remark: SA=Self adhesive ; AL=Aluminum foil Sheets are available for any thickness |
||||||
Heat insulation foam is characterized by:
•Low thermal conductivity
CYGFOAM has an unique closed cell structure,which offers the material a very good and stable thermal performance through a low Lambda value.
•High water vapor difussion resistance
CYGFOAM is compounded to a achieve a high water vapour diffusion resistance through its closed cell structure and outer dense skin.This helps maintaining a steady thermal performance and a long service life.
•Fire resistance
CYGFOAM is rated class O as per BS 476 Part 6&7for spread of flame and fire propogation.it does not melt, nor drip when burning,therefore does not cause fire transfer.low smoke density makes it a safer option.
•Environment Friendly
CYGFOAM is CFC&HCFC free,fiber free,dust free and resistant to mold and fungi growth.It has very low ODP(Ozone Depletion Potential)and GWP(Global Warming Potential)
•Chemical resistance
Inert to most acids, alkali, detergents, alcohols, esters, and ketones.
•Ease Of installation
CYGFOAM is quick and easy to install due to its high flexibility , adhesive,light,dimensional stability and smooth surface skin.It can be applied on pipes, ducts and tanks.
Application areas
Duct insulation
Roof insulation
Under-slab insulation
AC Unit insulation(internal insulation of units, evaporators, etc)
Transportation AC(commuter bus and train AC units, automotive AC units)
General thermal insulation(large diameter pipes, tanks, vessels, etc)
Packaging & Shipping
we supply products in roll, tape, gasket or seal formats. Packaging in PE bags ,Carton or according to your needs.
standard sea transportation
Short lead time :within two weeks production time
Our Services
CYG TEFA offers the best solution for polyethylene foam production based on long experience in the developing ,manufacturing PE foam.All the service are focused on quality of products and satisfied our customer.
Company Information
We are committed to developing,manufacturing and selling cross-linked PE foam. Over the 15 years ,we have developed 2 production bases in Shenzhen, Huzhou . and 13 production lines of all kinds,with annual production capacity of 6000tons.
FAQ
A: Your inquiry related to our products or prices will be replied in 24 hours.
B: Protection of your sales area, ideas of design and all your private information.
C: Best quality and competitive price.
1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using.
3) What’s the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
