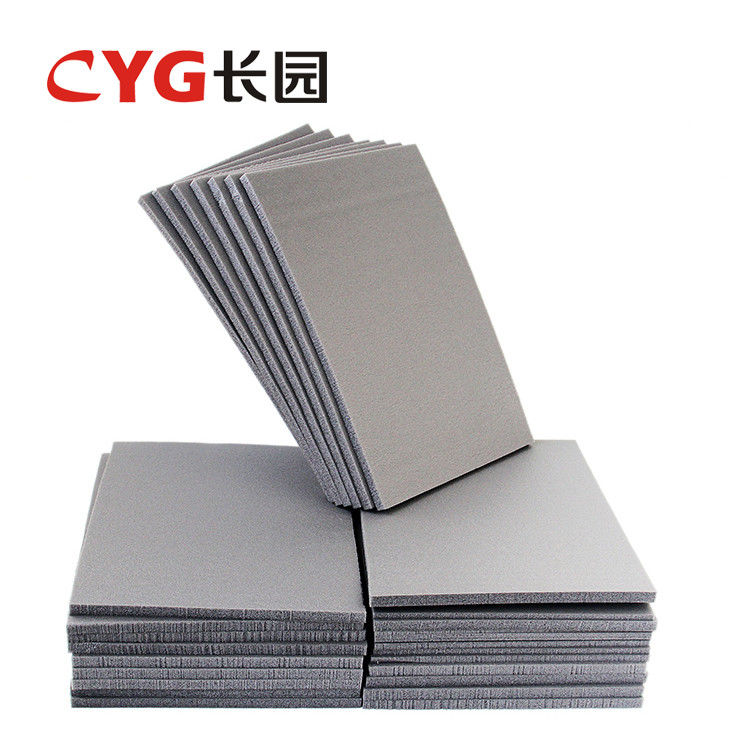

Ldpe Polyethylene Ixpe Underlay Sound Insulation Foam Moistureproof Anti Static

Ldpe Polyethylene Ixpe Underlay Sound Insulation Foam Moistureproof Anti Static
Ldpe Polyethylene Ixpe Underlay Sound Insulation Foam Moistureproof Anti Static Ldpe Polyethylene Ixpe Underlay Sound Insulation Foam Moistureproof Anti Static Ldpe Polyethylene Ixpe Underlay Sound Insulation Foam Moistureproof Anti Static

Large Image :  Ldpe Polyethylene Ixpe Underlay Sound Insulation Foam Moistureproof Anti Static

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: CYG
Model Number: CYG
Payment & Shipping Terms:
Minimum Order Quantity: 2000 Square Meter/Square
Price: $0.99 - $3.99 / Square Meters
Packaging Details: packing as request or common packing with PE bag
Supply Ability: 500 tons per month

Ldpe Polyethylene Ixpe Underlay Sound Insulation Foam Moistureproof Anti Static

Description
Material: PE Thickness: 1mm,2mm,3mm,4mm,5mm., 1-15mm
Size: As Requests. Feature: Waterproof,moistureproof,soundproof,heat Insulation.
Density: 25-330kg/m3 Color: Grey
Type: Ldpe Polyethylene Name: Ixpe Underlay Foam
Application: Foam Underlayment Port: Shekou
High Light:

closed cell foam insulation

,

foam insulation sheets

Ldpe Polyethylene Ixpe Underlay Sound Insulation Foam Moistureproof Anti Static





The Conductive IXPE foam is closed cell soft foam which takes polyethylene (PE) as a raw material, through adding anti-static materials and then crosslinked by irradiation and foaming. After foaming, the conductive filler in the interior of sheet formed a conductive path/network, so as to achieve the purpose of static leakage.The dimension can be designed by customers' requirements, for opto electronic devices, microelectronic devices packaging, and its anti-static property will not be changed for post-processing.



Conductive /anti-static foam outstanding performance for delicate and fragile, electronic, medical, heavy weight, high value items provides total functionality.


Ideal packaging and storage foam material for electrostatic discharge sensitive devices,assemblies and equipment.


Static dissipative&Conductive foam outstanding performance for delicate and fragile, electronic, medical, heavyweight, high-value items provides total functionality.



XPE foam one side with adhesive and one side with aluminum foil
Features: Water and shock-proof, fire resistance, thermal insulation.
White carpet underlay adhesive strip and overlap film for linking multiple roll
XPE double sides laminated with aluminum foil, an advanced thermal performance reflecting up to 95% radiant heat, allowing for cooler internal conditions in hot and humid climates, also it has a great property of flame retardant and tensile strength.Suitable for general purpose buildings such as sheds and workshops.


Specifications



  • Foam Type: IXPE FOAM / IXLPE FOAM

Property

Standard

Unit

Value

Density

-

Kg/m³

66.70

Tensile Strength

Transverse

ISO-1798

MPa

0.54~0.55

Longitudinal

0.64~0.65

Elongation

Transverse

ISO-1798

%

203.70~232.70

Longitudinal

253.90~283.40

Tearing Strength

Transverse

ISO-8067



Kn/m

3.47~3.68

Longitudinal

4.28~4.34

Operating Temperature Range

Internal

°C

(-40,+80)

Water Absorption % Volume (Maximum)

Internal

%

0.30

Thermal Conductivity

JIS A1412-2

W/mK

0.065

Shore - C

ASTM D2240

°C

40

Flammability

FMVSS302

mm/min

-

Additional Information

● All tests were carried out in 23°C ± 2.

● Data represents typical values measured on a 1mm thick specimen and should be considered as guidelines only.







Application





High reflective foam insulation products

CYG Insulation foam  is a flexible thermal insulation material made from closed cell, cross-linked polyethylene foam. The special cross-linking utilized in the production of the material, as well as, its closed cell structure, results in insulating properties that are superior to  fiberglass, rubber based and non cross-linked products.
A very low thermal conductivity value(K), and negligible water absorption and vapour transmission rates reflect in its superior energy saving performance, in  variety of environments.


1. excellent heat insulation performance:

low thermal conductivity, <0.040W/m · k, less than polystyrene, similar to polyurethane, as the excellent insulation, heat insulation materials;
2. high apparent density:

apparent density reach to 28±2kg/m ³,superior to polyurethane and phenolic foam; reduces the building's weight, load of the building and cost of the structure.also easy and fast to construct, and improve efficiency;

3. qualified combustion performance:

combustion performance reach the B2 level of building and decoration material class, the same as polystyrene;
4. good corrosion resistance and ageing resistance: resistance to acid and organic solvents,long-term exposure to the Sun, minor aging, special anti-aging treatment but can be done;
5. superior production technology to meet different needs: continuous and controllable production process meets different requirements of the length and width, effectively reducing the waste during transportation and installation.





About us



CYG TEFA Co., Ltd has 17 years of production experience. We're the biggest and the most professional irradiation cross-linked polyethylene conductive foam manufacturer in China and has the most complete cross-linked polyethylene foam products.

Our main products are Cross-linked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat, camping mat, sleeping mat, yoga mat; etc.



CYG TEFA offers the best solution for polyethylene foam production based on long experience in the developing ,manufacturing PE foam.All the service are focused on quality of products and satisfied our customer.
We are committed to developing,manufacturing and selling cross-linked PE foam.

Over the years,we have developed 3 production bases in Shenzhen,Hangzhou,Chongqing,and 8 production lines of all kinds,with annual production capacity of 4000 tons

All our products can be used for thermal insulation,waterproof,shockproof,etc. and also our products get the UL, ISO, SGS, Rohs, Reach , CE approval.

Our clients are iPhone, Samsung, Gree, Haier, TCL, Adidas, Nike, Flextronics, General Motors, BYD, PPL, etc. Now, we have 2 factories and 17 production lines...

And we have 11 production lines for production.Hope to cooperate with you.
