Fire-retardant Heat Insulation Roof Insulation Crosslinked Polyolefin XPE Foam

Fire-retardant Heat Insulation Roof Insulation Crosslinked Polyolefin XPE Foam
Fire-retardant Heat Insulation Roof Insulation Crosslinked Polyolefin XPE Foam Fire-retardant Heat Insulation Roof Insulation Crosslinked Polyolefin XPE Foam Fire-retardant Heat Insulation Roof Insulation Crosslinked Polyolefin XPE Foam Fire-retardant Heat Insulation Roof Insulation Crosslinked Polyolefin XPE Foam

Large Image :  Fire-retardant Heat Insulation Roof Insulation Crosslinked Polyolefin XPE Foam

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: CYG
Certification: ISO9001,REACH,ROSH,SGS,IATF16949,CE
Model Number: CYG
Payment & Shipping Terms:
Minimum Order Quantity: 2000 Square Meter/Square
Price: $1.00 - $10.00 / Square Meters
Packaging Details: packing as request or common packing with PE bag.
Delivery Time: 5~12 work days
Payment Terms: D/P, D/A, L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per month

Fire-retardant Heat Insulation Roof Insulation Crosslinked Polyolefin XPE Foam

Description
Features: Anti-fire Material: PE, PE Foam
Thickness: 0.5-100mm Size: As Requests
Density: 25-28kg/m3 Color: Customer-made
Max Width: 1.5m Length: As Requests
Application: Roof Ceiling Wall Duct Port: Shenzhen
High Light:

closed cell foam insulation

,

foam insulation sheets

Fire-retardant XPE foam heat insulation roof insulation foam material



1) no smelling, non-toxic: Use ecologic material, RoHS approval
2) soft and comfortable: Flexible with good elastic, stay the shape soon after press
3) dampproof and waterproof: Closed cross linked structure
4) heat insulation: Closed cross linked structure, keep warm
5) anti slip: Embossed surface
6) light and portable: About 500g/PCS
7) Durable: Good elastic and closed cross linked structure

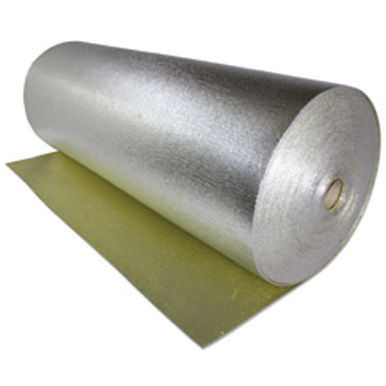

1. Foil+XPE Foam+foil

2.Thickness 3mm, 4mm, 5mm or as requests

3. Size:1.2M width* 40M length,also sizes available upon requests

4. Anti-flaming,thermal insulation

5. Light,dustfree,fire-retardant,Environmental

6. ROHS,REACH





Good pliability



CYG XPE FOAM rubber insulating products with good flexibility make them suitable for bent and irregular pipes in construction, saving both labor force and cost.

Vibration Resistance

CYG XPE FOAM heat-proof and heat-preservation plastic-rubber with high elasticity ,can reduce the vibration and resonance of the hot /cold water pipes utmost.

Good fire –blocking

This product has fire-blocking and smoke-reducing property , when burned , its density is very low and doesn’t melt, without any small fire ball left and with the merit of self-extinguishing.

According to the standard of GBB8624-1997 Method for grading flammability of construction material, this is the flame resistant product of grade B1 enabling to secure the satiety.

Low conductivity factor

Conductivity of this material is 0.034w/mk at an average°C. As this product has high heat-releasing ratio, it can get the same heat-preservation effect at less half thickness of other insulating product under the same. condition, saving not only space but also cost.



Specifications



 payment terms:TT/LC

  MOQ:1) 3mm-4mm thickness,MOQ3000sqm

            2)5mm-7mm thickness,MOQ2000 sqm

            3)thickness more than 8mm,MOQ 1000 sqm

 delivery date: from the Date of Order:15days

Loading Port: Shekou,Shenzhen,China





Advantages



1.excellent heat insulation performance: conducive ground insulation and  keep warmth;

2.high apparent density and compressive strength: help to ground leveling, reduce construction problems and ease, efficiency, improves work efficiency;

3.sound insulation, reducing vibration;

4.good mildew-resistant corrosion-resistant performance: resistance to acid and organic solvents. low water absorption rate, effectively prevent mildew, protect the floor;

5. superior production technology to meet different needs: continuous and controllable production process meets different requirements of the length and width, effectively reducing the waste during transportation and installation.



Foam specification



thermal conductivity

<0.040W/m · k

apparent density

≤28±2kg/m ³

compressive strength

≥0.185

combustion level

B2

water absorption

≤0.05g/cm2

Length

≤300M

width

≤2.5M



Products’ main technical data sheet:



Reflectivity

96%-97%

Thermal conductivity

0.034

Water vapor transmission

0.013g/kpa

Flame retardant

Class A /Class 1

Temperature range

-50 °c +90°c

OEM Accepted

Yes

Regular bubble size

10*4mm, 10*6mm, 20*4mm,20*6mm,

Regular EPE/XPE/IXPE thickness

2-10mm




Product Uses

 - Insulation for refrigerator and air-conditioner

– Various kinds of insulation tubes

– Thermal insulation for floor

– Anti-dew materials for sink

– Cushioning materials

– Various kinds of gaskets

– Thermal insulation for energy saving equipments

– Duct cover, wall partition strip etc. Fire Rating

 roof insulation foam material



Certificate authentication



We complied with SGS, ROHS ,ISO9001,UL and other international standards.



Any size can be customized .

Contact me and get more details





Fire-retardant Heat Insulation Roof Insulation Crosslinked Polyolefin XPE Foam 0Fire-retardant Heat Insulation Roof Insulation Crosslinked Polyolefin XPE Foam 1
