Product Details:
|
| Thickness: | 1~50 Mm | Size: | As Request |
|---|---|---|---|
| Type: | Other Waterproofing Materials | Density: | 25-330KG/M3 |
| Function: | Underlayment Roll Flooring | Width: | 1.2-1.8 M |
| Application: | Flooring | Feature: | Waterproof Acoustic Foam |
| Name: | Insulation Materials For Building | ||
| High Light: | foam insulation sheets,building insulation foam |
||

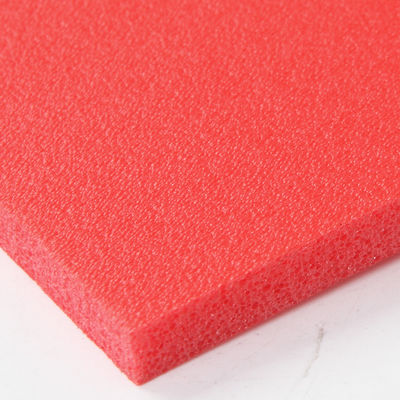

Cross-linked polyethylene foam able to maintain mechanical and acoustic characteristics stable in the time. The high compression resistance makes this material ideal for building “floating flooring”, even when the flooring – tile system laid on top is particularly heavy. The impact sound insulation value is 26 dB (see graphs).
Specifications
|
||||
| Property | Standard | Unit | Value | |
| Density | - | Kg/m³ | 66.70 | |
| Tensile Strength | Transverse | ISO-1798 | MPa | 0.70~0.72 |
| Longitudinal | 0.89~0.91 | |||
| Elongation | Transverse | ISO-1798 | % | 143.10~157.30 |
| Longitudinal | 145.00~164.20 | |||
| Tearing Strength | Transverse |
ISO-8067
|
Kn/m | 2.80~3.10 |
| Longitudinal | 3.51~3.62 | |||
| Compression 25% | ISO-3386-1 | kPa | 90.80 | |
| Compression 40% | ISO-3386-1 | kPa | 129.20 | |
| Compression 50% | ISO-3386-1 | kPa | 162.40 | |
| Compression Set 25% 0.5H | ISO-1856 | % | 13.70 | |
| Compression Set 25% 24H | ISO-1856 | % | 3.20 | |
| Operating Temperature Range | Internal | °C | (-40,+80) | |
| Water Absorption % Volume (Maximum) | Internal | % | 0.30 | |
| Thermal Conductivity | JIS A1412-2 | W/mK | 0.065 | |
| Shore - C | ASTM D2240 | °C | 40 | |
| Flammability | FMVSS302 | mm/min | - | |
Advantages
CYG TEFA Co., Ltd, a national high-tech company, established in December of 2002. Now we have 2 production bases in Shenzhen, Hangzhou, Chongqing, 8 production lines of all kinds, with annual production capacity of 6000 tons;
We are the leading manufacturer for XPE , IXPE foam,ESD foam for more than 17 years, all our products can be used for thermal insulation,waterproof,shockproof,etc. and also our products get the UL, ISO, SGS, Rohs, Reach , CE approval. and we have 17 production lines for production.Hope to cooperate with you.
IXPP project (three years: Proposal stage - Develop - Sampling - Approved product- Small quantity supply for testing
11 employee
Investment rate: 4% to 10%
Responsible for : Improving available product / Technology improving / New product development / New devices
