Product Details:
|
| Density: | 28-300 Kg/m3 | Thickness: | 0.5-100 Mm |
|---|---|---|---|
| Feature: | Good Waterproof, Heat Insulation, | Application: | Homes,roofs,walls,and Floors |
| Size: | Customed Size | Reflectivity: | 96-97% |
| Thermal Conductivity: | 0.032W/mk | Flammability: | Class 1 |
| Width: | 1m/1.2m/1.4m/1.5m | Raw Material: | PE |
| High Light: | closed cell foam insulation roll,xlpe foam sheet |
||

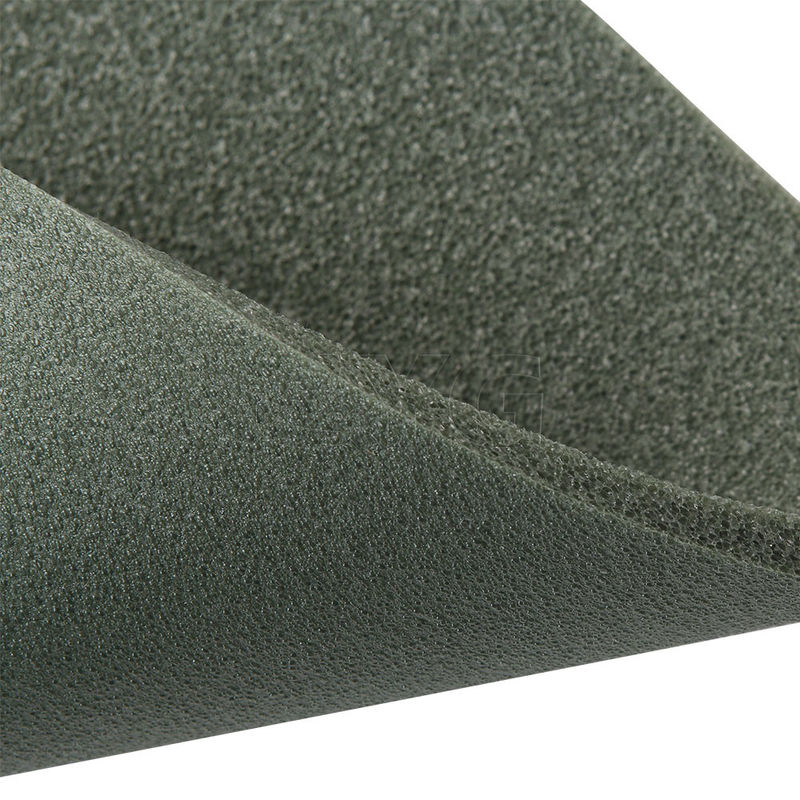

Cross Linked Polyethylene Closed Cell Pe Foam Fire Resistant Self Adhesive Foam
Product description
| PE Foam Brief Introduction | ||
| Product name | Xpe foam | Ixpe foam |
| Material |
Ldpe,(low density polyethylene foam) Ac foaming agent,cross-linking agent,etc |
Ldpe,(low density polyethylene foam) Ac foaming agent,etc |
| Structure | Closed cell,cross-linked(by cross-linking agent) | Closed cell,cross-linked(irradiated) |
| Density | 25~330 kg/m3 | 25~330 kg/m3 |
| One layer thickness | 2mm~3mm(Density:67~330kg/m3) | 0.5~10mm(Density:25~330kg/m3) |
| Laminated thickness |
1)10mm(25~100kg/m3) 2)12mm(25~40kg/m3) 3)customized |
Customized |
| Laminated with | Pe foam/Pure Alu/Aluminizing | |
| Size | customized | |
| Color | Normal is black,white,gray. Other color can be customized. | |
| Shape | Roll or sheet | |
| Adhesive | Available | |
| Fire resistance | Available (UL94-1) | |
Specification
| Density | 200±30 | 125±15 | 100±10 | 66.7±8 | 50±6 | 40±4 | 33.3±3 | |
| Hardness | 60-70 | 50-60 | 45-50 | 35-45 | 30-35 | 2-30 | 18-25 | |
|
Water absorption (23°C 24h)g/ cm³ |
≤0.02 | ≤0.02 | ≤0.03 | ≤0.03 | ≤0.04 | ≤0.04 | ≤0.05 | |
| Thermal conductivity | ≤0.092 | ≤0.082 | ≤0.07 | ≤0.062 | ≤0.053 | ≤0.047 | ≤0.041 | |
| Tensile strength(mpa) | L | ≥1.35 | ≥1.12 | ≥0.88 | ≥0.68 | ≥0.39 | ≥0.33 | ≥0.25 |
| M | ≥1.08 | ≥0.89 | ≥0.71 | ≥0.56 | ≥0.33 | ≥0.25 | ≥0.20 | |
| Tesibility | L | ≥260 | ≥230 | ≥210 | ≥190 | ≥170 | ≥160 | ≥140 |
| M | ≥220 | ≥200 | ≥185 | ≥170 | ≥150 | ≥135 | ≥130 | |
| Tearing strength | L | ≥5.90 | ≥4.80 | ≥3.60 | ≥2.80 | ≥1.80 | ≥1.60 | ≥1.35 |
| M | ≥7.10 | ≥5.40 | ≥4.00 | ≥3.30 | ≥2.30 | ≥2.00 | ≥1.70 | |
Advantages
Water durable: Closed-cell foam, non-water-absorbing, moisture-proof.
Rot resistant: Seawater, oil, acid and alkali durable; Antibacterial, safe, odorless and non-polluting.
Easy processing: Continuous; Easy hot-press shaping, casting, gluing and joining.
Shockproof: Good flexibility and anti-hardening; Excellent shockproof and cushion capability.
Heat preservation: Excellent heat insulation, anti-cold, non-frosting and insulation enduring capabilities.
Sound insulation: Closed-cell foam, good sound insulation capability.
Our services
Factory direct selling with lower price, sooner leadtime, better customized service.
Samples in stock can be arranged in one working day.
Company info
CYG Main Product:
Cross-linked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat, camping mat, sleeping mat, yoga mat; etc.
Years Of Experience
17 years of production experience.
Scale Of Factory
17 production lines :9 production lines in Shenzhen and 8 production lines in Huzhou .
Production Capacity
Annual 6000 tons
Why choose us
1.The biggest and the most professional irradiation cross-linked polyethylene conductive foam manufacturer in China
2.The most complete cross-linked polyethylene foam products.
3.Certificate: UL, ISO, SGS, Rohs, Reach , CE
Cooperative Partner
iPhone, Samsung, Gree, Haier, TCL, Nike, Flextronics, General Motors, BYD, PPL, etc.
CYG TEFA offers the best solution for polyethylene foam production,
We supply PE foam in rolls, the length of each roll can be customized to meet customer’s requirement.
The PE foam product can also be provided on the sheet as a request.
Here support foam die- Cutting,Lamination Adhesive ,Sheeting, Perforating & Skiving.
All the service are focused on quality of products and satisfied our customer.
