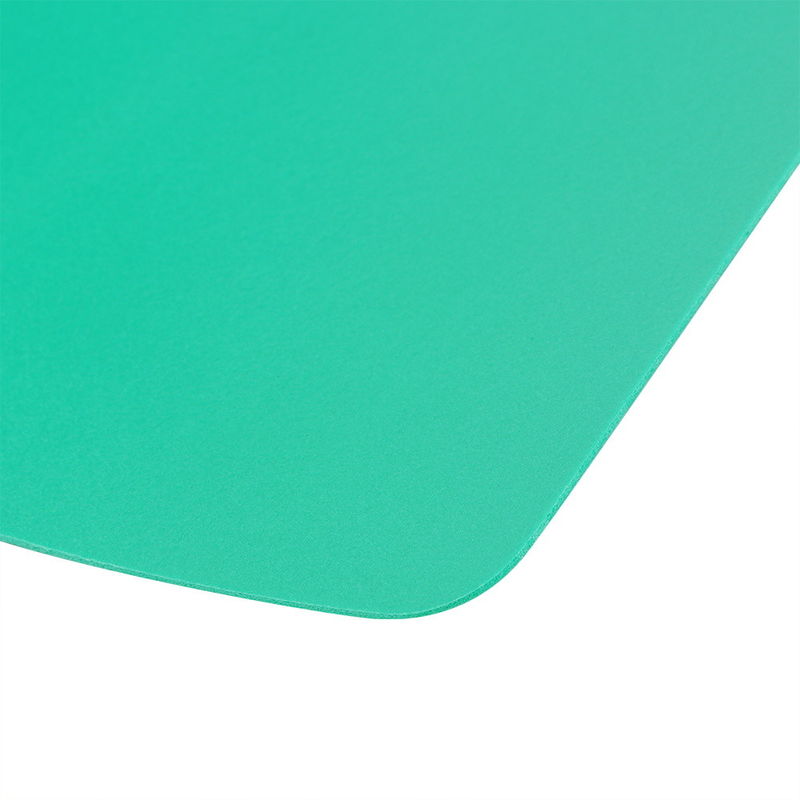

Low Density Construction Heat Insulation Foam Custom Polyethylene Foam Sheets





Foam Type: XPE FOAM / XLPE FOAM + AL Film + ADHESIVE
Property		Standard	Unit	Value
Density		-	Kg/m³	33.33
Tensile Strength	Transverse	ISO-1798	MPa	0.39~0.41
	Longitudinal			0.23~0.28
Tearing Strength	Transverse	ISO-8067	Kn/m	1.84~2.26
	Longitudinal			1.32~1.40
Compression 25%		ISO-3386-1	kPa	36.80
Compression 45%		ISO-3386-1	kPa	66.70
Compression 50%		ISO-3386-1	kPa	96.90
Compression Set 25% 0.5H		ISO-1856	%	15.80
Compression Set 25% 24H		ISO-1856	%	5.80
Operating Temperature Range		Internal	°C	(-40,+80)
Water Absorption % Volume (Maximum)		Internal	%	0.50
Thermal Conductivity		JIS A1412-2	W/mK	0.040
Shore - C		ASTM D2240	°C	23
Flammability		FMVSS302	mm/min	-



Additional Information

● All tests were carried out in 23°C ± 2.

● Data represents typical values measured on a 15mm thick specimen and should be considered as guidelines only.

● Processing method by eletronic heating.

● 12 kg/100m2 glue.



Features

• No adhesion to sealant surfaces
• Chemically inert
• Water resistant
• Non-absorbant
• Compressible



Heat insulation and light inflecting in construction and protection for both cold water and hot water pipe.
Separation of refrigerator, warm keeping for center air-conditioner, refrigerator and other home appliances.
Heat insulation, sound absorption and noise reduction for car, train, refrigerator car and laboratory, moisture proof cushion for traveling.
Packing for special products and cold storage
It can be made into different colors and anti-static according to customers' specific requirements to reach the standards of top grade decoration.
