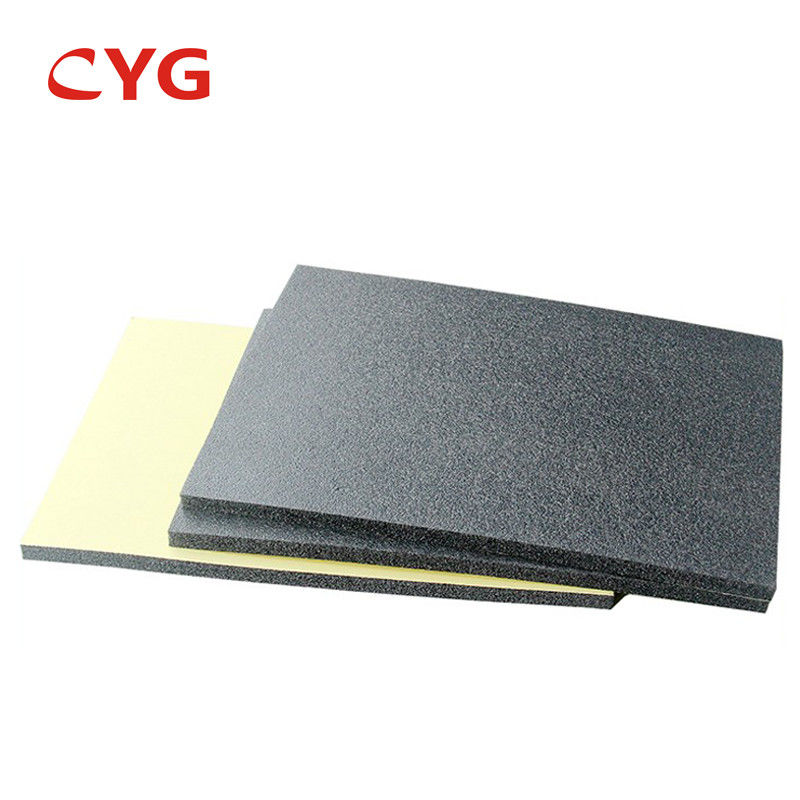

Expanded Polyethylene XPE Adhesive Foam Sheet LDPE Material For Construction

Expanded Polyethylene XPE Adhesive Foam Sheet LDPE Material For Construction
Expanded Polyethylene XPE Adhesive Foam Sheet LDPE Material For Construction Expanded Polyethylene XPE Adhesive Foam Sheet LDPE Material For Construction

Large Image :  Expanded Polyethylene XPE Adhesive Foam Sheet LDPE Material For Construction

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: CYG
Certification: Reach,ROHS,CE,ISO9001,UL94,IATF16949
Model Number: CYG-5230
Payment & Shipping Terms:
Minimum Order Quantity: 3000SQM
Price: $0.21~$3.96/SQM
Packaging Details: pe bags
Delivery Time: 15~25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per month

Expanded Polyethylene XPE Adhesive Foam Sheet LDPE Material For Construction

Description
Name: Adhesive Foam Sheet Expanded Polyethylene XPE Foam Sheets For Construction Density: 25-330kg/m3
Material: LDPE Thickness: 0.5-60MM
Width: 1-1.8m Type: Adhesive Backed Aluminum Foil
Application: Construction & Building Feature: Waterproof,Light,flexible,Eco-friendly,Close Cell Structure
High Light:

closed cell foam insulation

,

foam insulation sheets

Adhesive Foam Sheet Expanded Polyethylene XPE Foam Sheets For Construction



This product is blended polyethylene and other special packing, add chemical cross linking agent and foaming agent and polymer foam materials. Which makes the foam to be soft and high elasticity specification of foam, which can be used as Tear-resistant and shock absorption foam material, and wildly used in car, medical applications, heart forming, and high end protective packaging


Features

XPE has the properties of heat preservation, noise absorption, resistance upon chemics and
climate.It can beeither used in the heat preservation layer of home and mechanical air condition,
or made intothe model shape of the air condition at random which has fine appearance and good
property due to its good properties of resistance upon heat and good modeling.

1.PE foam+pure aluminum foil (coated aluminum foil)
2.Reflecting up to 97% of radiant heat
3.Excellent fire properties
4.Excellent acoustic insulating properties
5.Environmentally/ Eco-friendly and fibre-free


Specifications



  • Foam Type: XPE FOAM / XLPE FOAM + AL Film + ADHESIVE
Property Standard Unit Value
Density - Kg/m³ 33.33
Tensile Strength Transverse ISO-1798 MPa 0.39~0.41
  Longitudinal     0.23~0.28
Tearing Strength Transverse

ISO-8067



Kn/m 1.84~2.26
  Longitudinal     1.32~1.40
Compression 25% ISO-3386-1 kPa 36.80
Compression 45% ISO-3386-1 kPa 66.70
Compression 50% ISO-3386-1 kPa 96.90
Compression Set 25% 0.5H ISO-1856 % 15.80
Compression Set 25% 24H ISO-1856 % 5.80
Operating Temperature Range Internal °C (-40,+80)
Water Absorption % Volume (Maximum) Internal % 0.50
Thermal Conductivity JIS A1412-2 W/mK 0.040
Shore - C ASTM D2240 °C 23
Flammability FMVSS302 mm/min -

Applications

Roof, wall, floor, Attic for heat insulation and thermal insulation;
Shells of air conditioner and water heater;
Protective coatings of water pipe and ventilating pipe;
Expansion joint fillers, water proofing of terraces , roofs, foundation wraps,
sound barrier underlay, false ceilings, structural glazing.


Company info




CYG TEFA Co., Ltd, a national high-tech company, established in December of 2002. Now we have 2 production bases in Shenzhen, Hangzhou, with annual production capacity of 6000 tons;
We are the leading manufacturer for XPE , IXPE foam,ESD foam for more than 17 years, all our products can be used for thermal insulation,waterproof,shockproof,etc. and also our products get the UL, ISO, SGS, Rohs, Reach , CE approval. and we have 17 production lines for production.Hope to cooperate with you.

  • Management control system: Kingdee / OA / Oracle



  • On-going project

IXPP project (three years: Proposal stage - Develop - Sampling - Approved product- Small quantity supply for testing

  • R & D team

11 employee
Investment rate: 4% to 10%
Responsible for : Improving available product / Technology improving / New product development / New devices.
