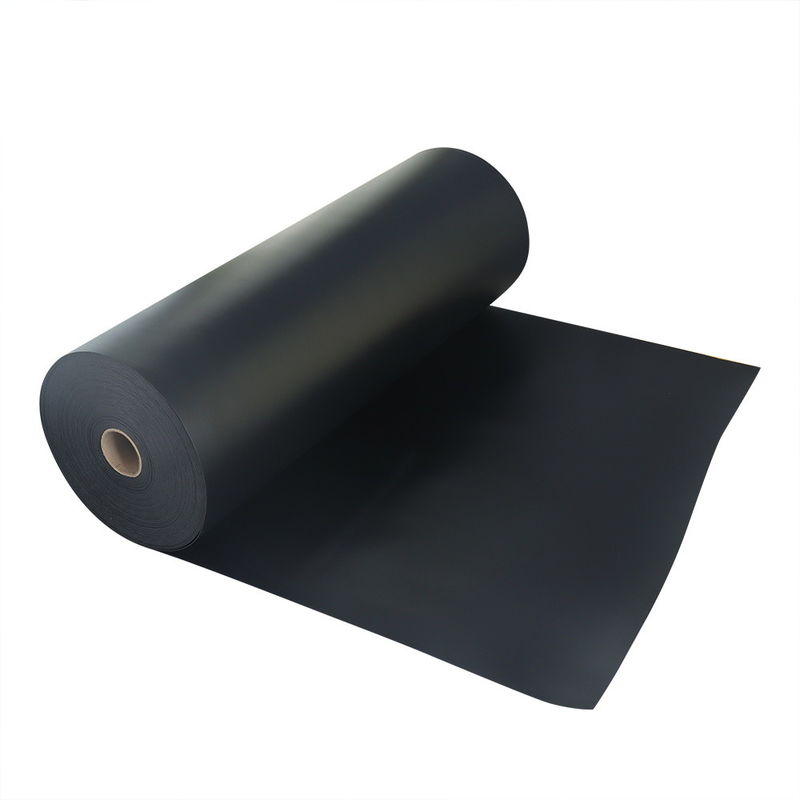

Flexible Soft Cross Linked Polyethylene Foam , Building Insulation Foam Ultra Thin

Flexible Soft Cross Linked Polyethylene Foam , Building Insulation Foam Ultra Thin
Flexible Soft Cross Linked Polyethylene Foam , Building Insulation Foam Ultra Thin Flexible Soft Cross Linked Polyethylene Foam , Building Insulation Foam Ultra Thin Flexible Soft Cross Linked Polyethylene Foam , Building Insulation Foam Ultra Thin

Large Image :  Flexible Soft Cross Linked Polyethylene Foam , Building Insulation Foam Ultra Thin

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: CYG
Certification: ISO9001, ISO14001, IATF16949,FMVSS 302,UL94 HF-1,RoHS,CE,etc.
Model Number: CYG-2528
Payment & Shipping Terms:
Minimum Order Quantity: 3000 SQM
Price: $0.12 - $8.16 / SQM
Packaging Details: PE bags or customized
Delivery Time: 16-25 Work days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 500 tons per month

Flexible Soft Cross Linked Polyethylene Foam , Building Insulation Foam Ultra Thin

Description
Color: Silver,Black,blue And So On Application: Construction,Roof/Wall/Floor
Thickness: 1-100mm(sheet Or Roll) Material: Ldpe
Density: 25-330KG/m3 Feature: Cold Resistant,flexible Soft Insulation,waterproof. Soundproof Eco-friendly And So On.,thermal Insualtion,Fireproof
Type: Other Heat Insulation Materials Roll Size: 1.2m (width)x 40m(length) 48m2,1.2/1.35*10m(custom Is Ok To Make)
High Light:

closed cell foam insulation

,

foam insulation sheets

Expanded Cross Linked Polyethylene Foam Construction Heat Insulation Foam



.IXPE foam is produced by compounding PE with some special padding and foaming material,then cross linking by irradiation and foaming which is considered as polymer material, expect the property of XPE, the IXPE has better property than the XPE foam: Its surface is much more smooth, the obturator foramen is much more well-proportioned and detailed, and its physical property is much better, too. Because of its environmental property, it is extensively used in food packing daily leisure use and medical instruments.

IXPE has the properties of heat preservation, noise absorption, resistance upon chemics and climate.It can beeither used in the heat preservation layer of home and mechanical air condition, or made intothe model shape of the air condition at random which has fine appearance and good property due to its good properties of resistance upon heat and good modeling.




Product name: Ultra-thin heat-reflective insulation material
Product structure: High-purity tensile aluminum foil + polyethylene closed-cell foam
Product features:

① high radiation, can radiate 97%;
② Ultra-thin and lightweight, designed thickness is 4-10mm, can be customized, density 33 kg / cubic
(3) Non-toxic and harmless absolute environmentally friendly products, the products can reach food-grade standards;
It is soft, easy to install, and saves installation costs;
⑤ Sound insulation, noise reduction, anti-condensation, and building comfort;
It is anti-aging and energy-saving, and it is expected to be more than 10 years;



Specifications



  • Foam Type: XPE FOAM / XLPE FOAM
Property Standard Unit Value
Density - Kg/m³ 100.00
Tensile Strength Transverse ISO-1798 MPa 0.89~0.90
  Longitudinal     0.98~1.04
Elongation Transverse ISO-1798 % 130.30~148.50
  Longitudinal     130.00~158.20
Tearing Strength Transverse

ISO-8067


Kn/m 5.87~6.00
  Longitudinal     6.22~6.54
Compression 25% ISO-3386-1 kPa 185.20
Compression 40% ISO-3386-1 kPa 252.40
Compression 50% ISO-3386-1 kPa 316.80
Compression Set 25% 0.5H ISO-1856 % 7.10
Compression Set 25% 24H ISO-1856 % 3.30
Operating Temperature Range Internal °C (-40,+80)
Water Absorption % Volume (Maximum) Internal % 0.30
Thermal Conductivity JIS A1412-2 W/mK 0.073
Shore - C ASTM D2240 °C 55
Flammability FMVSS302 mm/min -




Advantages



  • High foaming rate
  • Low density
  • Good elasticity
  • Good toughness
  • Thermal insulation
  • Energy saving
  • Noise reduction
  • Sound insulation
  • Anti-condensation
  • Corrosion and aging
  • Convenient





Features



  • Saves Energy: retain the temperature of the air they are transporting, reducing energy wastage.
  • Prevents Condensation on Ducts: XPE insulation provides a solid cover around the air ducts.
  • Reduces Noise Transmitted Indoors: XPE can carry sound waves all around the house and carry sounds across rooms such as the noise of the furnace turning on in phases as well.
  • Hot-dipped galvanized steel sheets of lock-forming quality are used for the manufacturing of standard ducts.
  • Ducts are also available in both, stainless steel and Aluminum.
  • All straight ducts have beading all along at a distance of 300 mm between them for reinforce.




Our services
Factory direct selling with competitve price, sooner leadtime,better customized services.
Samples in stock can be arranged in one working day.


Company info


CYG TEFA Co.,Ltd. is a subsidiary of Shenzhen Changyuan Croup Co.,Ltd (stoke code,600525).
CYG TEFA Co.,Ltd,a national high-tech company,established in December of 2002. ;We're the biggest and the most professional irradiation crosslinked polyethylene conductive foam manufacturer in China and has the most complete crosslinked polyethylene foam products. Now we have 3 production bases in Shenzhen,Hangzhou,Chongqing, 12 production lines of all kinds,with annual production capacity of 5000 tons;Our main products are Crosslinked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat, camping mat, sleeping mat, yoga mat; Etc.
