Product Details:
|
Density: | 25-333KG/m3 | Property: | Flame Retardant |
---|---|---|---|
Usage: | Building Construction Materials | Thermal Conductivity: | ≤0.035w/m.k |
Thickness: | 1-100 Mm Or As Requests | Color: | All Kinds |
Hardness: | 10-80 Shores | Port: | Shenzhen Port |
Material: | Foil + Foam | ||
Highlight: | 60 shores polyethylene foam insulation,0.035w/mk fireproof foam insulation |

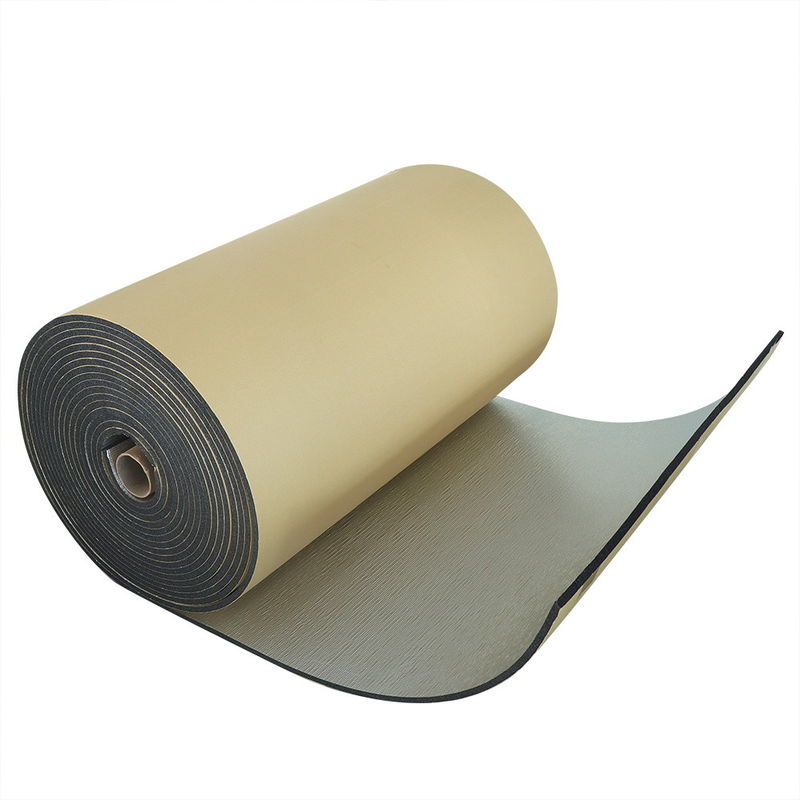

Thermal Insulation Foam Fire Retardant Polyethylene Xpe Ixpe Foam
Application
Buildings and Constructions
Expansion joint fillers, water proofing of terraces , roofs, foundation cushionings
False ceilings, structural glazing, sound barrier underlay
Automotive NVH solutions
Roof tops, engines, bonnets and drivers cabin insulation, door panels and seat linings, floor mats, carpet underlay, upholsteries, sun visors and car AC insulations etc.
HVAC
Pipe insulation,tube insulation,duct insulation.
Thermal Insulation Foam Fire Retardant Polyethylene Xpe Ixpe Foam
Closed cell cross-linked polyethylene foam product is the main raw material polyolefin, foam blowing agents and other additives have been mixed, and then extruded through the extruder, through the industrial electron accelerators produce high-energy electron beam irradiation to Cross-linking (and therefore different from the conventional chemical cross-linking, chemical cross-linking agent DCP toxic), thus changing the molecular structure of polyolefins into a tight three-dimensional network structure by free foam, stereotypes, and a series of follow-up processing of integer Process, to produce a high performance, high quality, delicate appearance, feel comfortable, good performance of secondary processing, non-toxic, tasteless grade closed-cell foam material.
Advantages
(1) Water durable: Closed-cell foam, non-water-absorbing, moisture-proof.
(2) Rot resistant: Seawater, oil, acid and alkali durable; Antibacterial, safe, odorless and
non-polluting.
(3) Easy processing: Continuous; Easy hot-press shaping, casting, gluing and joining.
(4) Shockproof: Good flexibility and anti-hardening; Excellent shockproof and cushion capability.
(5) Heat preservation: Excellent heat insulation, anti-cold, non-frosting and insulation
enduring capabilities.
(6) Sound insulation: Closed-cell foam, good sound insulation capability.
(7) Application: Widely used in resting cushions, children's toys, medium and shoes material,
compound floorboard, craftwork decoration sand, shoe material, packing lining, curtain wall and so on.
Advantages
1. excellent heat insulation performance:
low thermal conductivity, <0.035W/m · k, less than polystyrene, similar to polyurethane, as the excellent insulation, heat insulation materials;
2. low density foam:
apparent density reach to 28±3 kg/m ³,superior to polyurethane and phenolic foam; reduces the building's weight, load of the building and cost of the structure.also easy and fast to construct, and improve efficiency;
3. qualified combustion performance:
combustion performance reach the B2 level of building and decoration material class, the same as polystyrene;
4. good corrosion resistance and ageing resistance: resistance to acid and organic solvents,long-term exposure to the Sun, minor aging, special anti-aging treatment but can be done;
5. superior production technology to meet different needs: continuous and controllable production process meets different requirements of the length and width, effectively reducing the waste during transportation and installation.
Advantages
Features
1. Good chemical, oil, acid and alkali durability capabilities.
It is safe and odorless, easy for machining and casting, and can be mixed with many other materials. It has a wide developing area as a new environmentally-safe material.
2. Cushion Capability:
Semi-hard quality foams have good rebound capabilities after strong impact, suitable for the packing of instruments, semi-conductors and electronics, etc.
3. Sound Absorption:
Good sound and noise absorption capability, suitable for sound absorption and insulation parts of automobiles, electro-motors and other equipment and environments with loud noises.
4. Shaping Capability:
Good heat endurance and ductility capability with even density, suitable for making deep interior parts like shaping in vacuum and hot environments, like the air conditioning vaporizing tank of automobiles, hot-shaped peak canopy of vehicles and shoes, etc.
5. Heat Insulation:
Single-foaming structure can reduce the loss of heat between air convections, suitable for making heat preservation pipes and boards. Good anti-dew capability, suitable for humid environments like refrigerators, air-conditioners and ice houses, etc.

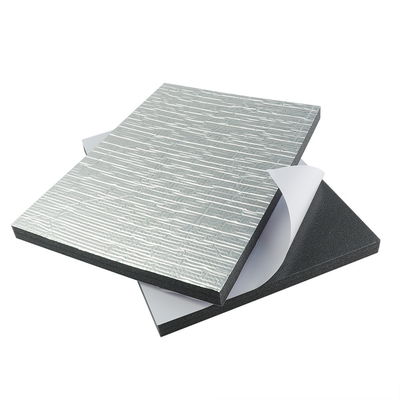

High reflective foam insulation products
CYG Insulation foam is a flexible thermal insulation material made from closed cell, cross-linked polyethylene foam. The special cross-linking utilized in the production of the material, as well as, its closed cell structure, results in insulating properties that are superior to fiberglass, rubber based and non cross-linked products.
A very low thermal conductivity value(K), and negligible water absorption and vapour transmission rates reflect in its superior energy saving performance, in variety of environments.
FAQ
What is PE foam?
Polyethylene foam is a strong, resilient closed-cell foam. Ideally foam material suited as the material or part of a material required in products requiring a shock absorbing, vibration dampening, insulation, barrier or buoyancy component etc.
Why choose Low-density polyethylene foam?
Low-density polyethylene foam has numerous applications because of its many desirable properties including water-resistance, chemical resistance, energy-absorbance, buoyancy and cushioning characteristics. Compressive strength is greater in denser foams, decreasing as density decreases. Low-density foams tend to exhibit more compressive creep, meaning they become less thick over time, than higher-density foams.
What's the application of insulation?
Our insulation products are widely used on roofing, external wall, floor, HVAC pipe, transportation and any other places needing insulation
What's the difference between pure aluminum & metallic aluminum(MPET)?
Pure aluminum is metal film which can be fireproof, while metallic aluminum(MPET) is just plastic film which can be fire.
What's the difference between XPE & EPE?
Both XPE and EPE are polyethylene foam, but their foaming process are different. XPE with normal density of 33kg/m3, and EPE is 18 kg/m3; XPE can be fireproof, while EPE is not; Also XPE has longer use life than EPE, but EPE is much cheaper.
What's the structure of your pure aluminum film?
We use the pure aluminum film with PET/AL/PE layers, the PET can protect Al from oxidation and corrosion.
What's the R-value?
he R-value differ with material structure and thickness, normally rang from 2.4-3.5.
What's the use age?
If use indoor, can be 5-8 years; if use outdoor, can be 1-3 years; if use inside the wall, can be permanent.
