Product Details:
|
| Features: | Anti-fire | Material: | PE, PE Foam |
|---|---|---|---|
| Thickness: | 0.5-100mm | Size: | As Requests |
| Density: | 25-28kg/m3 | Color: | Customer-made |
| Max Width: | 1.5m | Length: | As Requests |
| Application: | Roof Ceiling Wall Duct | Port: | Shenzhen |
1) no smelling, non-toxic: Use ecologic material, RoHS approval
2) soft and comfortable: Flexible with good elastic, stay the shape soon after press
3) dampproof and waterproof: Closed cross linked structure
4) heat insulation: Closed cross linked structure, keep warm
5) anti slip: Embossed surface
6) light and portable: About 500g/PCS
7) Durable: Good elastic and closed cross linked structure

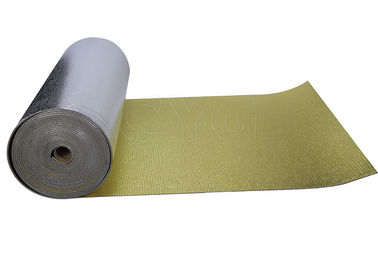

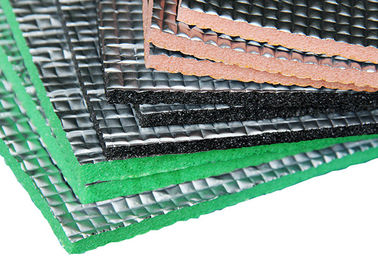

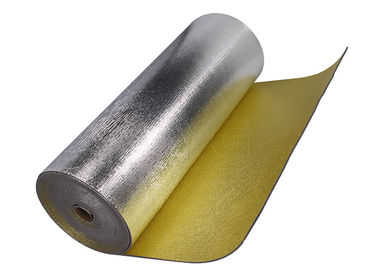

1. Foil+XPE Foam+foil
2.Thickness 3mm, 4mm, 5mm or as requests
3. Size:1.2M width* 40M length,also sizes available upon requests
4. Anti-flaming,thermal insulation
5. Light,dustfree,fire-retardant,Environmental
6. ROHS,REACH
Good pliability
CYG XPE FOAM rubber insulating products with good flexibility make them suitable for bent and irregular pipes in construction, saving both labor force and cost.
Vibration Resistance
CYG XPE FOAM heat-proof and heat-preservation plastic-rubber with high elasticity ,can reduce the vibration and resonance of the hot /cold water pipes utmost.
Good fire –blocking
This product has fire-blocking and smoke-reducing property , when burned , its density is very low and doesn’t melt, without any small fire ball left and with the merit of self-extinguishing.
According to the standard of GBB8624-1997 Method for grading flammability of construction material, this is the flame resistant product of grade B1 enabling to secure the satiety.
Low conductivity factor
Conductivity of this material is 0.034w/mk at an average°C. As this product has high heat-releasing ratio, it can get the same heat-preservation effect at less half thickness of other insulating product under the same. condition, saving not only space but also cost.
Specifications
payment terms:TT/LC
MOQ:1) 3mm-4mm thickness,MOQ3000sqm
2)5mm-7mm thickness,MOQ2000 sqm
3)thickness more than 8mm,MOQ 1000 sqm
delivery date: from the Date of Order:15days
Loading Port: Shekou,Shenzhen,China
Advantages
1.excellent heat insulation performance: conducive ground insulation and keep warmth;
2.high apparent density and compressive strength: help to ground leveling, reduce construction problems and ease, efficiency, improves work efficiency;
3.sound insulation, reducing vibration;
4.good mildew-resistant corrosion-resistant performance: resistance to acid and organic solvents. low water absorption rate, effectively prevent mildew, protect the floor;
5. superior production technology to meet different needs: continuous and controllable production process meets different requirements of the length and width, effectively reducing the waste during transportation and installation.
Foam specification
|
thermal conductivity |
<0.040W/m · k |
|
apparent density |
≤28±2kg/m ³ |
|
compressive strength |
≥0.185 |
|
combustion level |
B2 |
|
water absorption |
≤0.05g/cm2 |
|
Length |
≤300M |
|
width |
≤2.5M |
Products’ main technical data sheet:
|
Reflectivity |
96%-97% |
|
Thermal conductivity |
0.034 |
|
Water vapor transmission |
0.013g/kpa |
|
Flame retardant |
Class A /Class 1 |
|
Temperature range |
-50 °c +90°c |
|
OEM Accepted |
Yes |
|
Regular bubble size |
10*4mm, 10*6mm, 20*4mm,20*6mm, |
|
Regular EPE/XPE/IXPE thickness |
2-10mm |
Product Uses
- Insulation for refrigerator and air-conditioner
– Various kinds of insulation tubes
– Thermal insulation for floor
– Anti-dew materials for sink
– Cushioning materials
– Various kinds of gaskets
– Thermal insulation for energy saving equipments
– Duct cover, wall partition strip etc. Fire Rating
roof insulation foam material
Certificate authentication
We complied with SGS, ROHS ,ISO9001,UL and other international standards.
Any size can be customized .
