Product Details:
|
Type: | IXPE FOAM | Material: | Polyethylene Foam |
---|---|---|---|
Color: | Blue And Black | Size: | Customized Size |

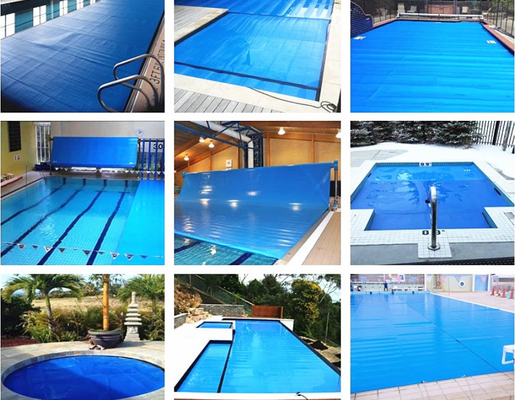

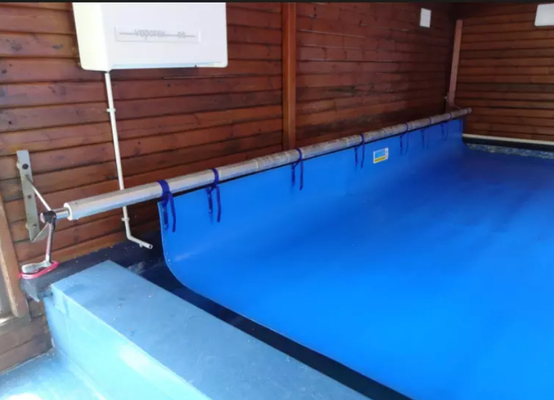

Function: | Thermal Insulation And Protection | Usage: | Pool Cover |
Thickness: | 3/7mm | Port: | Shenzhen |
IXPE foam is produced by compounding PE with some special padding and foaming material,then cross linking by irradiation and foaming which is considered as polymer material, expect the property of XPE, the IXPE has better property than the XPE foam: Its surface is much more smooth, the obturator foramen is much more well-proportioned and detailed, and its physical property is much better, too. Because of its environmental property, it is extensively used in food packing daily leisure use and medical instruments.
The structure of polyethylene foam is neither entirely solid nor entirely empty. Produced via a three-step extrusion process (mixing, expansion and cooling), polyethylene foam can be manufactured to satisfy a specific range of desired performance benchmarks such as comfort, support and/or durability.
It is during this manufacturing process that flame retardant additives can be introduced to meet various fire code standards, as well as anti-microbial, anti-static, conductive and/or electrostatic dissipative (ESD) additives.
Foam varies according to its cell-structure, combustibility, comfort, density, durability, firmness, flexibility, porosity, resiliency, strength and support.
New England Foam stocks many different types of foam with the following special properties:
Adhesive
Anti-Microbial
Anti-Static (A/S)
California Technical Bulletin 117 Complaint (Cal 117)
Combustion Modified (CM)
Conductive
Electrostatic Dissipative (ESD)
Fire Retardant (FR)
UL94/HF-1 Compliant
Parameter
Density | 200±30 | 125±15 | 100±10 | 66.7±8 | 50±6 | 40±4 | 33.3±3 | |
Hardness | 60-70 | 50-60 | 45-50 | 35-45 | 30-35 | 2-30 | 18-25 | |
Water absorption (23°C 24h)g/cm³ |
≤0.02 | ≤0.02 | ≤0.03 | ≤0.03 | ≤0.04 | ≤0.04 | ≤0.05 | |
Thermal conductivity | ≤0.092 | ≤0.082 | ≤0.07 | ≤0.062 | ≤0.053 | ≤0.047 | ≤0.041 | |
Tensile strength(mpa) | L | ≥1.35 | ≥1.12 | ≥0.88 | ≥0.68 | ≥0.39 | ≥0.33 | ≥0.25 |
M | ≥1.08 | ≥0.89 | ≥0.71 | ≥0.56 | ≥0.33 | ≥0.25 | ≥0.20 | |
Elongation | L | ≥170 | ≥150 | ≥130 | ≥120 | ≥100 | ≥90 | ≥80 |
M | ≥190 | ≥170 | ≥150 | ≥140 | ≥110 | ≥100 | ≥90 | |
Tearing strength | L | ≥5.90 | ≥4.80 | ≥3.60 | ≥2.80 | ≥1.80 | ≥1.60 | ≥1.35 |
M | ≥7.10 | ≥5.40 | ≥4.00 | ≥3.30 | ≥2.30 | ≥2.00 | ≥1.70 |
Advantages
(1) Water durable: Closed-cell foam, non-water-absorbing, moisture-proof.
(2) Rot resistant: Seawater, oil, acid and alkali durable; Antibacterial, safe, odorless and
non-polluting.
(3) Easy processing: Continuous; Easy hot-press shaping, casting, gluing and joining.
(4) Shockproof: Good flexibility and anti-hardening; Excellent shockproof and cushion capability.
(5) Heat preservation: Excellent heat insulation, anti-cold, non-frosting and insulation
enduring capabilities.
(6) Sound insulation: Closed-cell foam, good sound insulation capability.
(7) Application: Widely used in resting cushions, children's toys, medium and shoes material,
compound floorboard, craftwork decoration sand, shoe material, packing lining, curtain wall and so on.
1. Excellent performance, surface resistivity and volume resistivity is very stable, at the same time, according to the customer requirement between adjusted
2. With anti-static properties in not affect by environment or dry humidity
3. Environmental protection, non-toxic, no odor
4. Shockproof
5. Good performance: Cutting, adhesive processed into customer requirements of various shapes 25 IXPE Technical parameters of 40kg/m3 conductivity IXPE foam
6. High temperature resistance: IXPE resists a maximum temperature of 80°C.
7. Heat insulation, sound insulation, abrasion resistance; hard to lose and consume.
8. Nonchemical corrosion: free chemical corrosion to the electronic devices and the packing materials.
9. Superior buffering and cushioning performance: independent and meticulous closed cell
Application
Swimming Pool Underlay
Shock absorption
Waterproof
Good corrosion resistance and ageing resistance
Soft and smooth
Construction
Expansion joint fillers, water proofing of terraces , roofs, foundation wraps,
sound barrier underlay, false ceilings, structural glazing.
Automotive
Roof tops, engines, bonnets and drivers cabin insulation, door panels and seat linings, floor mats, carpet underlay, upholsteries, sun visors and car AC insulations etc.
HVAC
Pipe insulation,tube insulation,duct insulation.
Body Protection
Cushion Capability,semi-hard quality foams have good rebound capabilities after strong impact.
Lightweight,Flexibility,Cost-effective.
Surfboard
Floating capability
High shock absorption
Waterproof
Extremely low odor
Non toxic
Artificial Grass
PE foam layer for Artifcial Grass
Feature
1) Natural appearance
2) Excellent performance, more natural
3) Comfortable
4) Good UV stability
5) Good water permeability
6) Easy installation and maintenance.
High quality synthetic turf no infill artificial grass soccer mini football field
XPE Foam Shock Pad
|
|||
Foam Type
|
Close Cell Cross Linked Polyethylene Foam
|
||
Available Density
|
30-33kgs/m3
|
||
Thickness
|
10-20mm or customized
|
||
Color
|
Black, blue, green, orange or others
|
||
Width
|
1-1.5m,Max 1.8meter
|
||
Length
|
10-20m or customized
|
||
Application
|
· Playground surfacing
· Patio underlay
· Roof Garden underlay
· Shock pad underlay for artificial grass
|
||
Function:
|
· Good insulation and sound absorption
· Environmentally friendly · Any existing surface may be considered suitable to install on |
||
Other density, thickness and dimensions available upon request.
|
Item | Index | Unit | Test method |
Density | 50±10% | kg/m3 | ISO845 |
Tensile strength | 0.15 | MPa | EN12230 |
Shock absorption | 41 | % | EN14808 |
Vertical deformation | 6.1 | mm | EN14809 |
HIC value | 0.4 | m | EN1177 |
Water infiltration rate | 31818 | mm/h | EN12616 |
