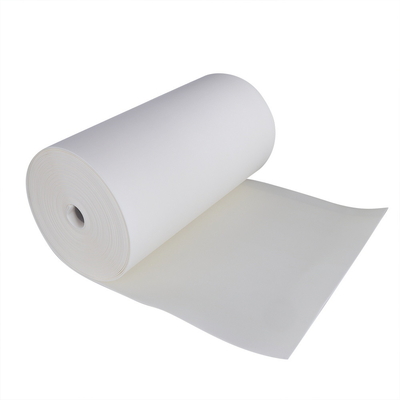

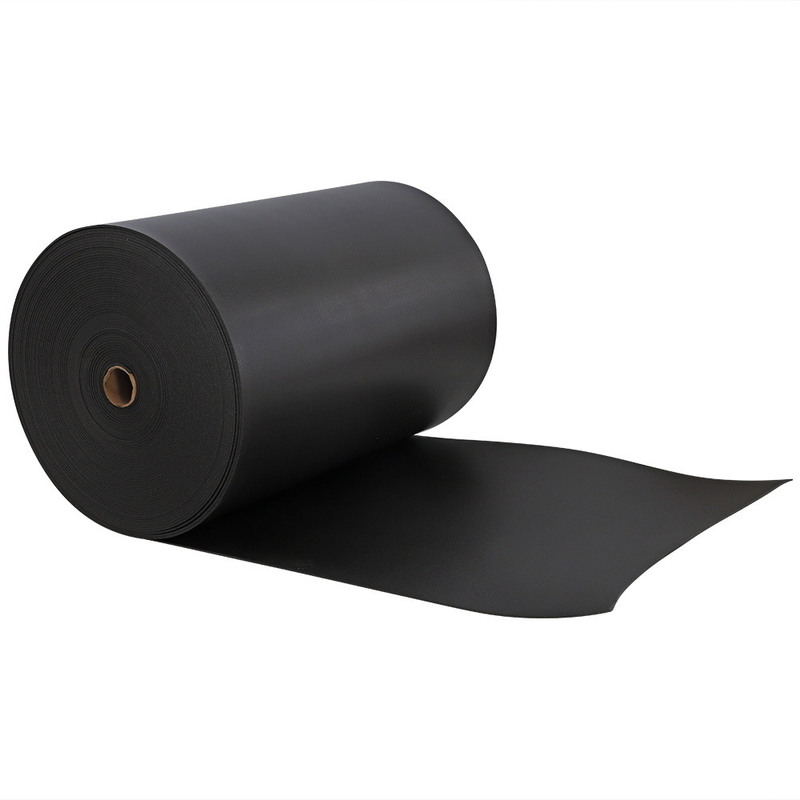

Lightweight, Recyclable Water-resistant Closed-Cell Foam IXPE Mats, Direct from the Manufacturer

Certification
China Cyg Tefa Co., Ltd. certification
China Cyg Tefa Co., Ltd. certification
Customer Reviews
Reliable supplier with very good service and professional commercial team!

—— Zhang'R

CYG TEFA is a good foam supplier, they have an efficient marketing team, it is a responsible manufacturer.

—— Mr.Liu

Very good quality IXPE foam and quick leadtime, the professional team always provide best service for us.

—— Kim

I'm Online Chat Now

Lightweight, Recyclable Water-resistant Closed-Cell Foam IXPE Mats, Direct from the Manufacturer

Lightweight, Recyclable Water-resistant Closed-Cell Foam IXPE Mats, Direct from the Manufacturer
Lightweight, Recyclable Water-resistant Closed-Cell Foam IXPE Mats, Direct from the Manufacturer Lightweight, Recyclable Water-resistant Closed-Cell Foam IXPE Mats, Direct from the Manufacturer

Large Image :  Lightweight, Recyclable Water-resistant Closed-Cell Foam IXPE Mats, Direct from the Manufacturer

Product Details:
Place of Origin: China
Brand Name: CTF
Certification: SGS
Model Number: PE Foam
Payment & Shipping Terms:
Minimum Order Quantity: 500KG
Packaging Details: PE Bags or Customized
Payment Terms: L/C, T/T, Western Union, MoneyGram

Lightweight, Recyclable Water-resistant Closed-Cell Foam IXPE Mats, Direct from the Manufacturer

Description
Material: LDPE Density: 25-333kg/m3
Hardness: 20-70 Colour: Customized Colour
Sample: Freely Provide Brand Name: Green Thermal
Feature: Water-proof Characteristics: Duration

 Lightweight, Recyclable Water-resistant Closed-Cell Foam IXPE Mats, Direct from the Manufacturer

Espu
ma  Polietileno Precio Flame Resistant Material Retardant Expanding Crosslinked Xp
e And Ixpe Foam Underlayment
Foam Type: IXPE FOAM / IXLPE FOAM
Property
Standard
Unit
Value
Density
-
Kg/m³
66.70
Tensile Strength
Transverse
ISO-1798
MPa
0.54~0.55

Longitudinal


0.64~0.65
Elongation
Transverse
ISO-1798
%
203.70~232.70

Longitudinal


253.90~283.40
Tearing Strength
Transverse
ISO-8067
Kn/m
3.47~3.68

Longitudinal


4.28~4.34
Operating Temperature Range
Internal
°C
(-40,+80)
Water Absorption % Volume (Maximum)
Internal
%
0.30
Thermal Conductivity
JIS A1412-2
W/mK
0.065
Shore - C
ASTM D2240
°C
40
Flammability
FMVSS302
mm/min
-
Performance
Lightweight, Recyclable Water-resistant Closed-Cell Foam IXPE Mats, Direct from the Manufacturer 0



Heat Insulation

Single foaming structure can reduce the loss of heat between air convection, suitable for making heat preservation pipes and boards.



Waterproof

Closed-cell foam, non-water-absorbing, moisture-proof.



Shock absorption

Soft texture and good resilience enable foam to have a shock absorption effect and play a protective role.Semi-hard quality foams have good rebound capabilities after strong impact.



Sound absorption

Good sound and noise absorption capability.

Lightweight, Recyclable Water-resistant Closed-Cell Foam IXPE Mats, Direct from the Manufacturer 1
Fire retardancy
This product has fire-blocking and smoke-reducing property, when burned, its density is very low and doesn't melt, without any small fire ball left and with the merit of self-extinguishing.

Low conductivity factor
Conductivity of this material is 0.032 w / mk at an average° C. As this product has high heat-releasing ratio, it can get the same
heat-preservation effect at less half thickness of other insulating product under the same condition, saving not only space but also cost.
Product Processing
Lightweight, Recyclable Water-resistant Closed-Cell Foam IXPE Mats, Direct from the Manufacturer 2
Lightweight, Recyclable Water-resistant Closed-Cell Foam IXPE Mats, Direct from the Manufacturer 3
Application



Foam tape

IXPE Foam for Photovoltaic tape is a classical cases in our projects. We give a professional solution as followings. IXPE foam with density of 67kg/m3, 1mm, black or white, after gluing, and coated with PE flm on surface, it will be made into the tape with of good tensile property.

Lightweight, Recyclable Water-resistant Closed-Cell Foam IXPE Mats, Direct from the Manufacturer 4
Lightweight, Recyclable Water-resistant Closed-Cell Foam IXPE Mats, Direct from the Manufacturer 5
Lightweight, Recyclable Water-resistant Closed-Cell Foam IXPE Mats, Direct from the Manufacturer 6
Company Profile



CYG TEFA CO.,LTD

CYG TEFA CO.,LTD is an affiliate of the listed company WOER (Shenzhen: 002130). Established in December 2002, CYG is committed to the research and development, production and sales of cross-linked PE and PP foam materials, and is a national high-tech enterprise. There are two bases in Shenzhen and Huzhou, with more than ten various production lines with an annual production capacity of more than 6,000 tons; The main products are: ESD, XPE, IXPE, IXPP and various composite materials based on XPE, IXPE, IXPP ; Widely used in electronic communications, automotive, air-conditioning refrigeration, construction, sports protective gear, medical supplies and other industries, products are sold to many regions around the world.
